Posted by : insulatedpanelsmachinery.com / On : 2024.09.07

A good blower is needed to convey EPS particles during EPS foam process which happens at EPS insulation or packaging factory,a good blower also is needed to convey EPS recycled scraps which are produced at recycling factory.Overall,a blower is generally requested.

9-19 high pressure blower is a centrifugal EPS blower. It is widely used for conveying EPS materials. Its characteristics are small flow, high wind pressure, good exhaust and air supply effects. Most manufacturers on the market produce two series, A and D. A is a direct motor drive, and D is a coupling drive.

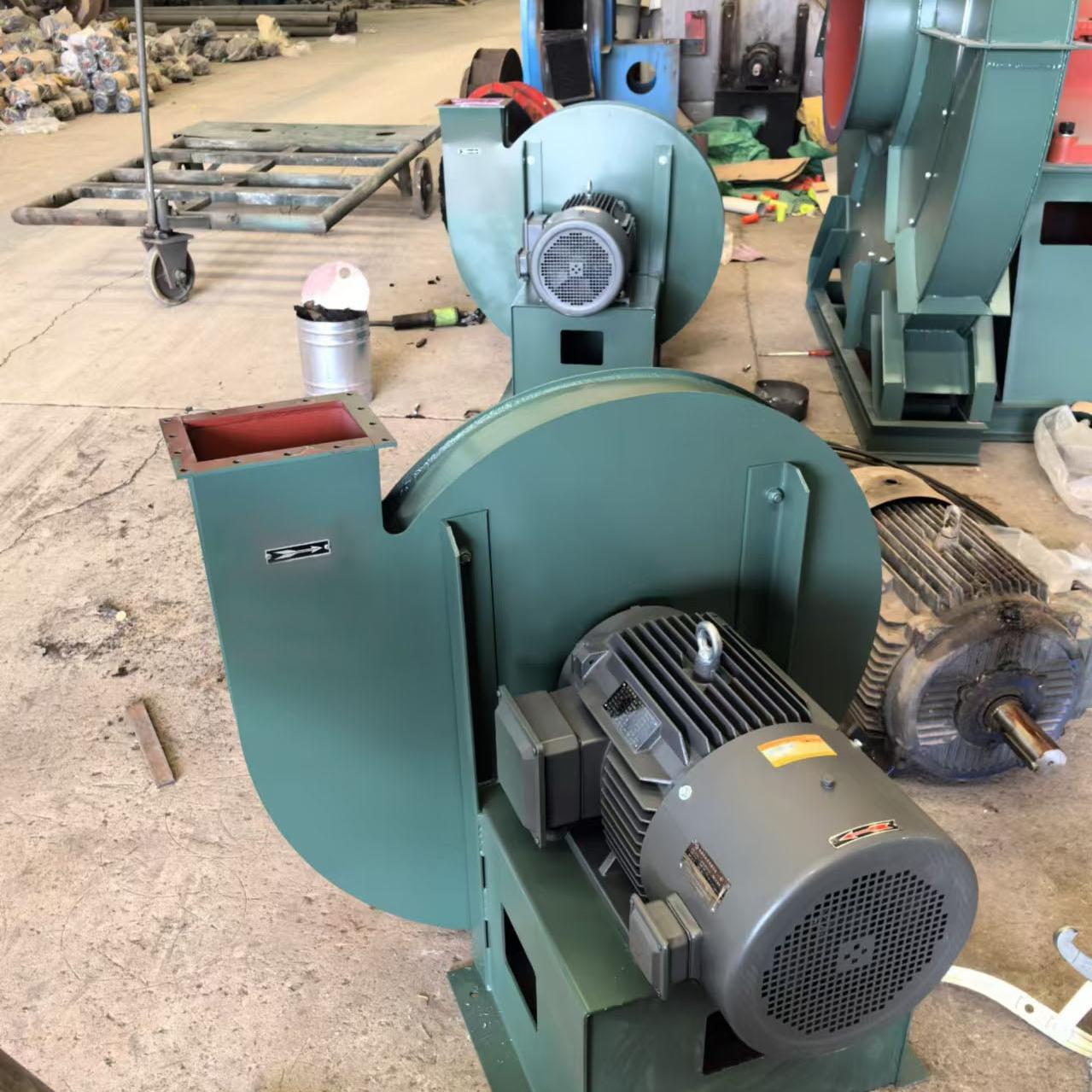

EPS blower

Blower Application
Generally used for high-pressure forced ventilation and exhaust in industries such as spraying, electroplating, radio, batteries, and glass manufacturing. It can also be widely used for conveying materials and gases.

Conditions of Use
1. Requirements for conveyed materials: The conveyed materials are non-corrosive, non-flammable and non-explosive, and free of sticky substances. The dust and hard particles contained in the media should not exceed 150mg/m3.
2. Medium temperature: generally not more than 50℃ (maximum not more than 80℃)

Structural form
1. 9-19 centrifugal blower is a single suction type with a forward curved impeller.
2. According to the different rotation directions of the impeller, the blower can be made into right-handed and left-handed directions. Looking from one end of the motor, the impeller rotates clockwise for a right-hand blower, indicated by "right"; counterclockwise for a left-hand blower, indicated by "left".
3. The outlet angle of the 9-19 centrifugal blower can be made into 6 angles: 0°, 45°, 90°, 135°, 180°, and 225°. my country's standard products are 0°, 45°, and 90°, and the remaining angles can be made according to user needs.
4. The transmission mode of the 9-19 centrifugal blower is A/D:
A type: direct motor drive, compact structure, simple maintenance. Machine No. 3.5~6.3# adopts this transmission mode
D type: coupling drive, the structure is a one-piece type: that is, the blower, transmission group and motor are all assembled on the same rigid base, thereby reducing the difficulty of customer installation and greatly shortening the construction period of on-site installation and commissioning. Machine No. 7.1# and above adopt this transmission mode.

Model
Motor Power
Voltage
Frequency
Speed
Air Flow
Pressure
V
Hz
r/min
m³/h
Pa
9-19 3.15A
0.75KW-2P
380
50
2830
402-545
2223-2262
1.1KW-2P
380
50
2830
617-832
2231-2017
9-19 3.55A
1.5KW-2P
380
50
2840
560-760
2545-2590
2.2KW-2P
380
50
2840
860-1160
2554-2310
9-19 4A
2.2KW-2P
380
50
2840
824-1264
3584-3597
3KW-2P
380
50
2870
1410-1704
3507-3253
9-19 4.5A
4KW-2P
380
50
2890
1174-2062
4603-4447
5.5KW-2P
380
50
2900
2281-2504
4297-4112
9-19 5A
7.5KW-2P
380
50
2900
1610-2844
5697-5517
11KW-2P
380
50
2900
3166-3488
5323-5080
9-19 5.6A
11KW-2P
380
50
2900
2622-3619
7182-7109
15KW-2P
380
50
2900
3309-4260
7068-6755
18.5KW-2P
380
50
2900
3996-4901
6954-6400
9-19 6.3A
18.5KW-2P
380
50
2900
3220-5153
9149-9055
22KW-2P
380
50
2900
4455-6066
9003-8601
30KW-2P
380
50
2900
5690-6978
8857-8148
