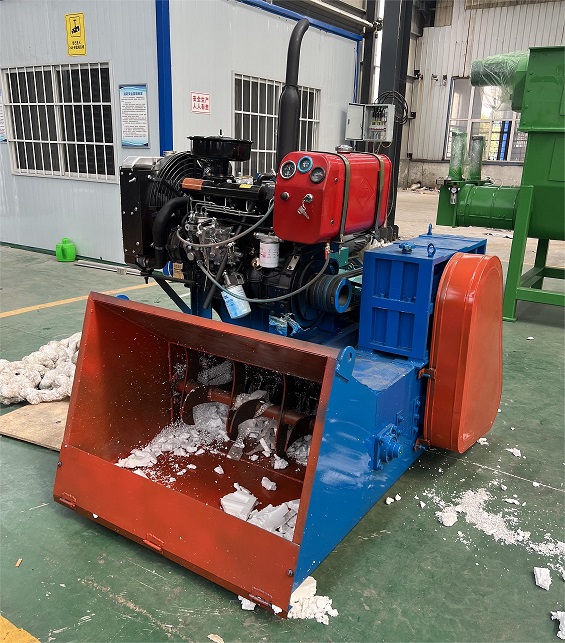

EPS foam hot melting machine is portable and diesel engine powered

Lorem ipsum dolor, sit amet consectetur elit saepe!

Posted by : insulatedpanelsmachinery.com / On : 2022.11.08

The EPS melting machine can crush the EPS loose foam by the two crushing shafts and melt them into densified lump.The machine is powered by diesel engine and need no supply of public electricity. So,it is convenient to load the machine on the truck to go anywhere to process the foam waste.As the foam waste is dispersed everywhere and foam waste is big size and light weight,so, businessman need to travel to collect them,so the diesel machine is popular in the market.

1. The EPS melting equipment is horizontal hopper and it is easy to feed the equipment.

2. The machine works with two pcs of crushing shafts which can crush the waste nicely.

3. The diesel engine is low noise.

4. The diesel engine can be started manually by Z handler,or by a button which is with battery.Cause the battery is dangerous item in transportation,we do not ship the battery and buyer need prepare it locally.

5. The heating barrel is durable and barrel body is good materials which can heat and melt the foam nicely.You can get white color lump with our machine.

6. One year warranty.

Item Name	Configuration
Machine Model	1000
Machine Capacity	200kg/h
Crushing Shafts	2 pcs of Horizontal shafts
Heating Power	3kw
Heating Way	Electricity from electricity generator
Diesel Engine Brand	Caterpillar
Diesel Engine Model	490
Power	92hp
Rev	2200 r/min
Diesel Engine Startup	Manually / Battery
Machine Hopper Size	1000*700mm
Machine Size	190015801300mm
Weight	1100kg
