CNC Grooving Machine for EPS Package

automatic eps grooving package machine is made for various foam package which is done by hot wire grooving.It is also called mold free package machine.We can customise the machine as your demand.

Enquiry

Social Share:

You can also contact us directly to place an order:

WhatsApp: +86 13833131292

Email: jack@insulatedpanelsmachinery.com

Description
Product Videos

EPS grooving machine is also called mold free Hot wire cutting machine,mold free package machine,it is for eps foam cutting for package application.

The EPS grooving package machine need to bend the rigid hot wire to different shapes to groove on EPS panel.Users need bend the wire and install the rigid wire on the machine head.The wire shape can be round,square,oval,arrow,or any irregular shape.Some machines also need the hot wire which is same wire for EPS block cutting machine to split the entire panel into individual pieces.

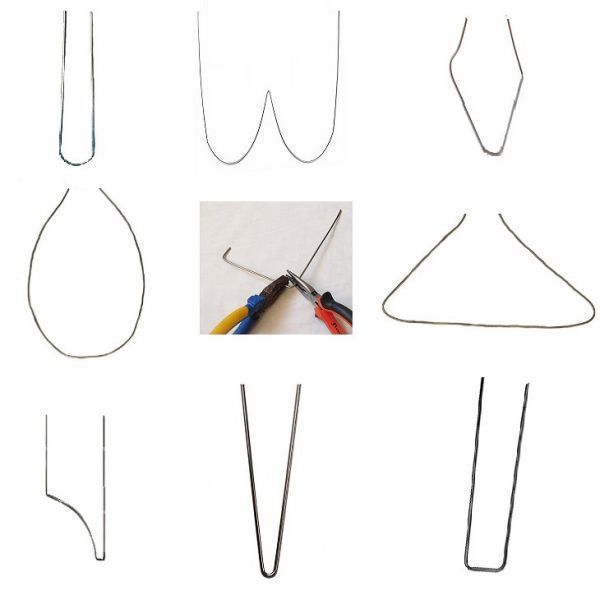

How to bend your hot wire

how to bend your hot wire

The EPS grooving machine uses no mold which is different with eps box molding machine which use mold. It is also for package application.This is the reason why it is addressed as mold free package machine.

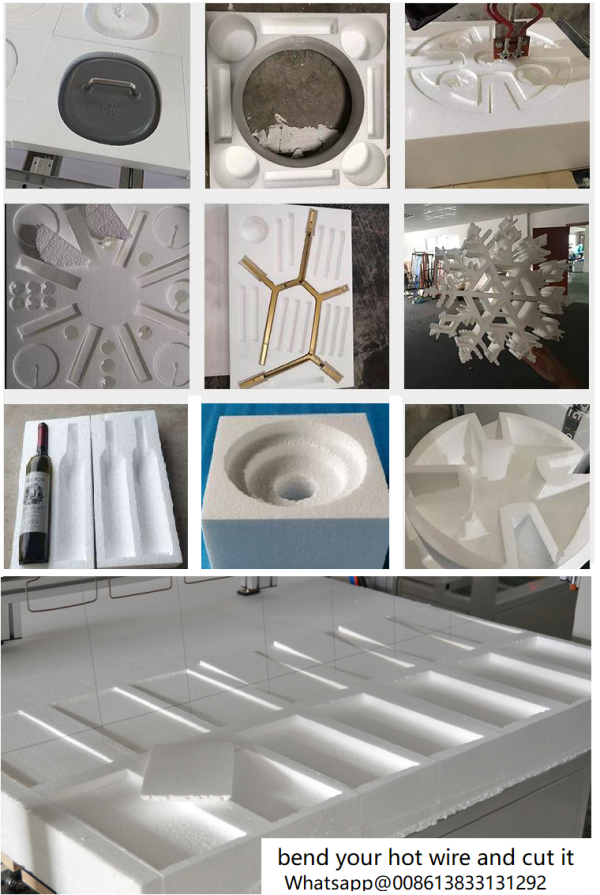

Application

application of CNC eps cutting machine

Machine Configuration	Semi automatic/automatic/CNC
Rotary cutting wires	2,4,6,8 pcs	customized
Fixed cutting wires	2,4,6,8 pcs	customized
Cutting size	8001200100 mm or customized
Adjustable Cutting depth	100 mm or customized
Temperature range	50℃ – 700℃
Travel control	Photoelectric sensor
Weight range	60kg – 300 kg
Application	Eps foam column hollow,round hollow,square,rectangle,circular hollow,abnormal shape etc.
Custom making	available
