CNC hot wire 2D cutting machine with wire oscillation

CNC hot wire 2D cutting machine with wire oscillation

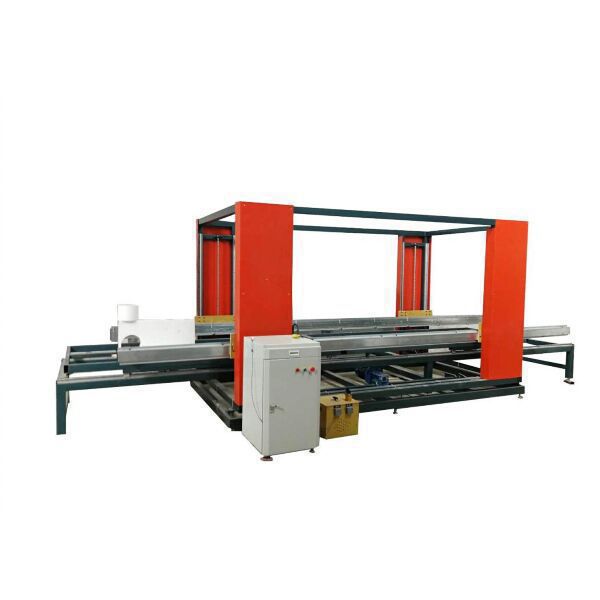

China made CNC EPS cutting machine is oscillating hot wire machine for contour cutting eps foams with CNC control tech. it is for cutting foam decorative mouldings like roman pillar,cornice etc

Enquiry

Social Share:

You can also contact us directly to place an order:

WhatsApp: +86 13833131292

Email: jack@insulatedpanelsmachinery.com

Description

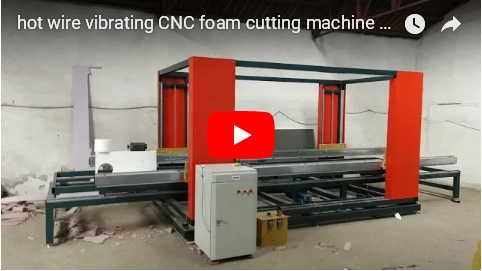

Product Videos

Introduction

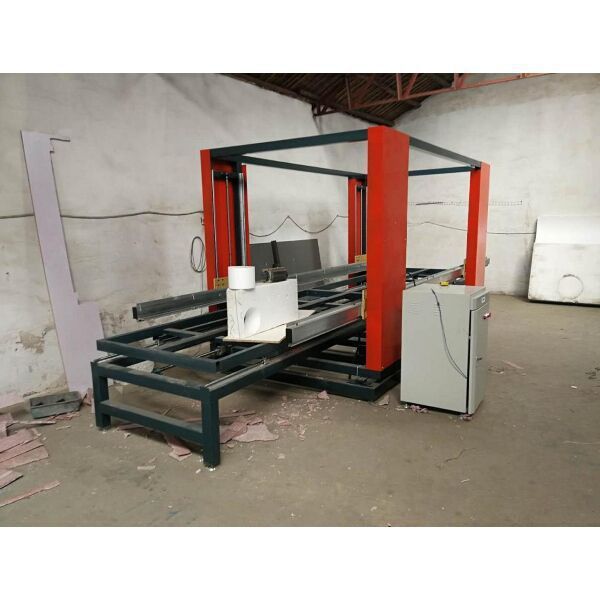

The hot wire CNC EPS cutting machine is to cut 2D shapes with thermocol foam materials,such as eps architectural mouldings,roman column,cornice ,decorative eps facade profiles, Styrofoam eps decorations,Eps wall panels,Styrofoam logo and letters and more product from Expanded Polystyrene Styrofoam etc.

We design our CNC EPS cutting machine with oscillating hot wires,so,it has unique advantages than most of other hot wire machines in the market.

Software

We pre-install DevCAD CNC software in the laptop and the laptop will be shipped with machine in the sea container.It is an internationally famous software to drive the hot wire cutting machine.

Specification

Model No.	Wire Oscillation	Cutting Length (mm)	Wire Length (mm)	Cutting Height (mm)	Wire Qty	Wire Travel Distance(mm)
						X axis	Y axis
CNCPSQ300	Yes	3000	1400	1350	24	1800	1300
			2200
			2600
CNCPSQ600		6000	1400	1350	24	1800	1300
CNCPSQ300	No	3000	1400	1350	24	1800	1300
			2200
			2600
CNCPSQ600		6000	1400	1350	24	1800	1300
			2200
			2600

Special Design

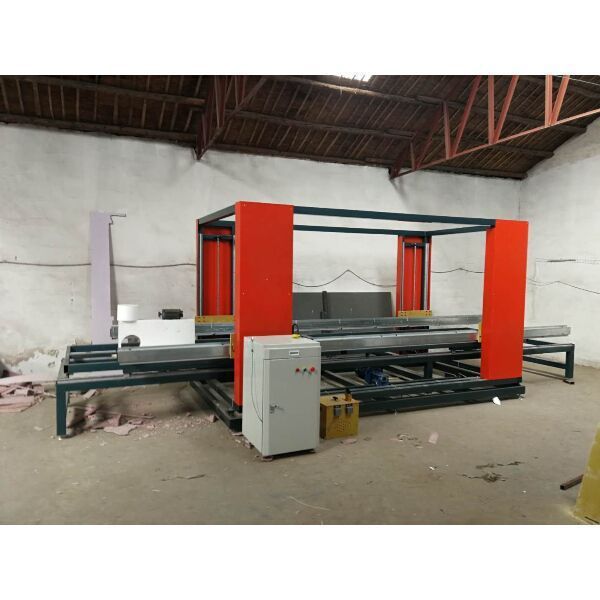

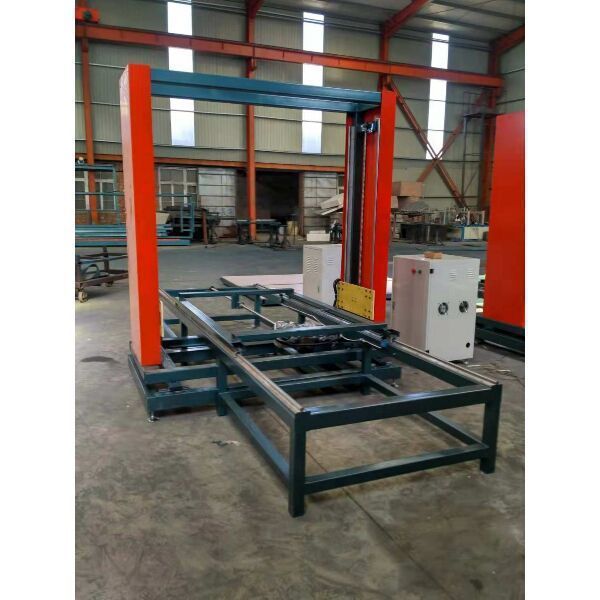

We have designed with our CNC EPS cutting machine for hot wire moving up and down,the working table move horizontally for 2D foam shape cutting.

The hot wire can be oscillating when cutting going in process,the oscillating hot wire machine can benefit you for some aspects:

1) Improving the cutting capacity by 1/3.

2) Able to cut some hard-to-cut materials like Non Flammable EPS foam,not-fully-dried EPS block etc.

3) Hot wire can truely follow the route for cutting 90` degree angel.

To max achieve the hot wire cutting capability,we further design the below feature:

1) The hot wire oscillation can be variable frequency.so,oscillation can be faster or slower at your control.

2) The hot wire temperature can be adjusted.

Multi wires heavy duty CNC foam cutting machine

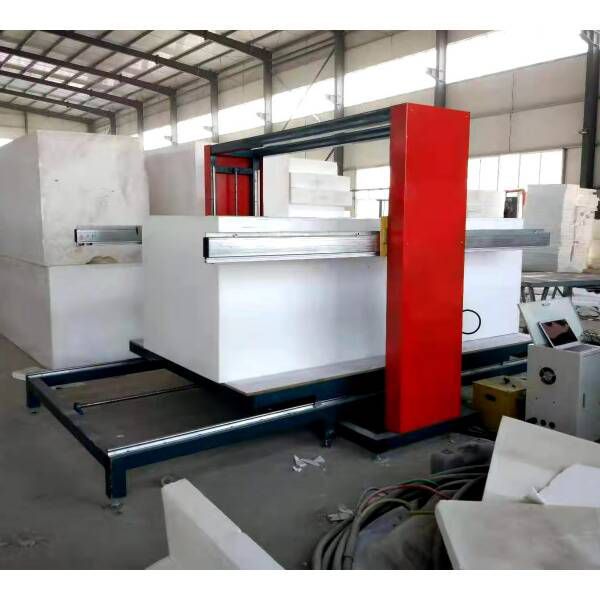

The CNC EPS cutting machine is oscillating hot wire machine which can take up to 20 pcs of hot wires,it mean it can cut 20 pcs of foam mouldings at one time.it is with steel structure and industrial stepper motor and ball screw,it is durable in working and it is designed for mass capacity application for foam cutting factories.

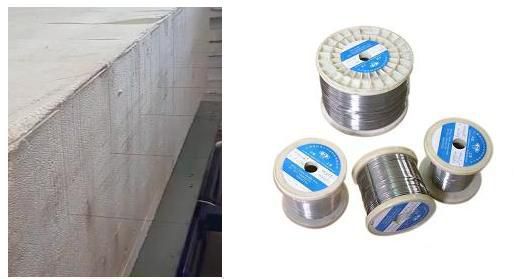

The cutting wires are Nichrome( NiCr) cutting wires with diameter 0.4mm,0.6mm.it is inexpensive and suitable for everyday uses.The hot wires will reach the temperature of a few hundred Celcius degrees during cutting.We usually ship machine with one kg of hot wires.

Feature

1) It works by computer via CAD software which signal X&Y axes synchronously for eps cutting products. You need design the pattern via AUTO CAD software, and X axis is for horizontal movement, Y axis is for vertical movement.

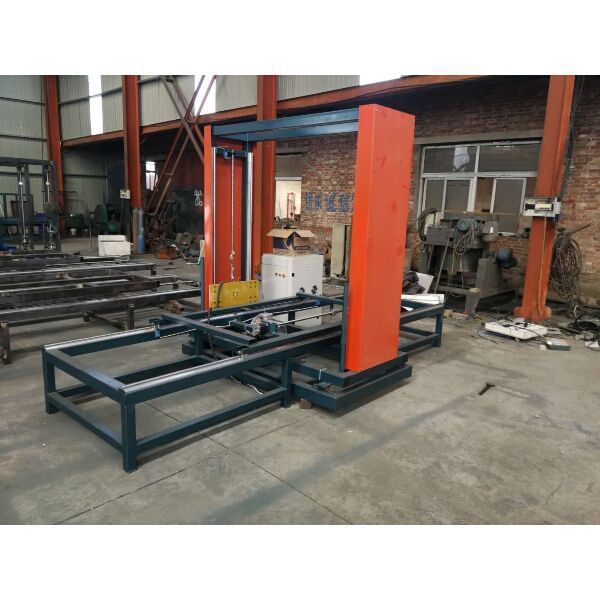

2) The CNC EPS cutting machine structure is by rectangular pipe,sliding system is by linear module,both design can make the motion stable and cutting precisely.

3) The step motor enjoys with stable motion and free speed regulation,it is good for special shape cutting which requires variable speed.

4) Cutting frame can take 20 pcs hot wires which can max cut 20 pcs similar pattern and characters for 3m machine.

5) Machine functions with stroke protection,power cut memory,backlash compensation etc.

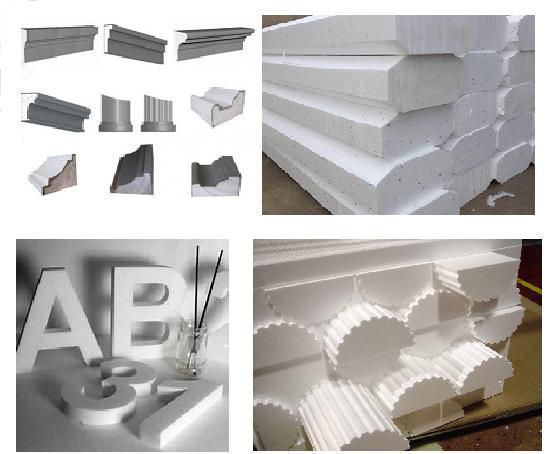

Application

Foam letters,words and advertisement elements.

Architectual decorations like roman column,cornice etc

Other 2D foam shapes.
