hot wire CNC foam cutting machine with turntable for 2D/3D/4D models
hot wire CNC foam cutting machine with turntable for 2D/3D/4D models
hot wire CNC foam cutting machine with turntable for 2D/3D/4D models
hot wire CNC foam cutting machine with turntable for 2D/3D/4D models
hot wire CNC foam cutting machine with turntable for 2D/3D/4D models
hot wire CNC foam cutting machine with turntable for 2D/3D/4D models
hot wire CNC foam cutting machine with turntable for 2D/3D/4D models
hot wire CNC foam cutting machine with turntable for 2D/3D/4D models
hot wire CNC foam cutting machine with turntable for 2D/3D/4D models
hot wire CNC foam cutting machine with turntable for 2D/3D/4D models

hot wire CNC foam cutting machine with turntable for 2D/3D/4D models

it is CNC seperate control on vertical and horizontal directions for the 2 ends of hot wires for contour cutting eps foams.it can cut many shapes in our daily life. this is cnc foam 3D cutting machine

Enquiry

You can also contact us directly to place an order:

whatsapp WhatsApp: +86 13833131292

email Email: jack@insulatedpanelsmachinery.com

  • Description
  • Product Videos
Hot wire CNC foam cutting machine with turntable can cut 2D,3D and 4D shapes,hot wires are imported brand,its temprature can be adjusted.The CNC foam cutting machine is applicated for stage property,advertisement materials,foam characters making,building mouldings,lost foam mold,foam packages,tapered wings,complex foam cut,rotary cut,special shape foam etc..

Cutting Specification
Model No.
Cutting Length (mm)
Wire Length (mm)
Cutting Height (mm)
Machine size (mm)
C100606
1000
600
650
1200*700*1000
C151306
1500
1300
650
2000*700*1000
C211306
2100
1300
650
2400*1600*1600
C151313
1500
1300
1300
2000*1600*1600
C211313
2100
1300
1300
2400*1600*1600
C301313
3000
1300
1300
3200*1600*1600
C152313
1500
2300
1300
2000*2500*1600
C242313
2400
2300
1300
2600*2500*1600
C302313
3000
2300
1300
3200*2500*1600

Turntable in the CNC foam 3D cutting machine can be optional. It can be installed inside the machine table or on the table.

Feature
1)  It is CNC control with software automatically following the cutting routine.it can cut 2D,3D,4D with one button switch for 2D and 4D.
2) Machine has four axis with independent axis control,the two ends of wire can be independent motioned on vertical and horizontal directions.
3) Ball screw and industrial chain can make good precision in cutting.
4) Sixaxis control is easier.Digital display on it.
5) Power is on when cutting is on,power off when cutting is off.
6) Alarm system is equiped with the CNC foam 3D cutting machine.
7) The temperature of hot wire can be controlled.
8) Devfoam,Auto CAD software and other intelligent software applicable.
devfoam software for cnc machine

Youtube Video

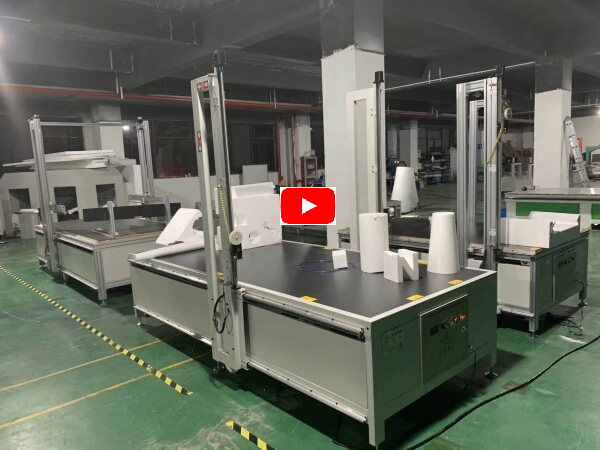

 hot wire cnc foam 3d cutter
cnc foam cutting machine with turntable, cnc hot wire 3d cutting machine , cnc foam cutter , hot wire 4 axis cutting machine , cnc hot wire cutting machine , cnc thermocol cutter , eps foam cnc cutter ,
