Our  EPS pellets machine is optional with newly designed strand die head which is meshless (without filtering screen mesh) and it automatically removes impurity.It is diffirent with normal machines in the market.

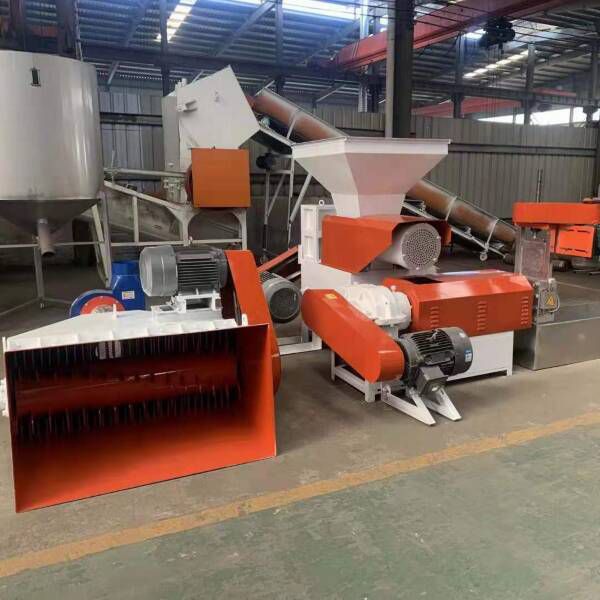

EPS pelletizing machine is also called as eps granulator recycling machine, it includes eps shredder for eps foam waste, pipe, silo, strand die granulator main machine, water channel, cutter etc and also the eps shredder for hot melting ingot and eps shredder for cold compacted bricks based on your different feedings. The line is used for making recycled eps  waste into particles which can be used as raw materials for making extruded polystyrene,picture frame,insulation materials,bill board,auxiliary materials etc products.

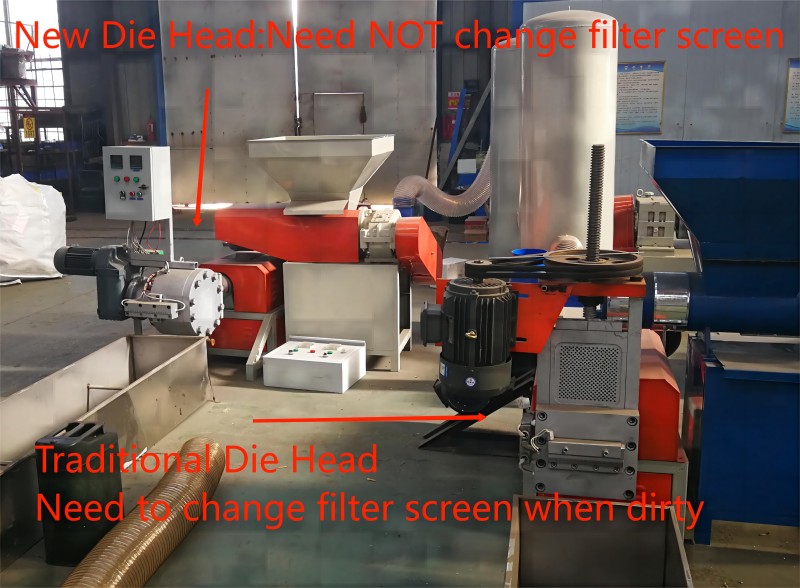

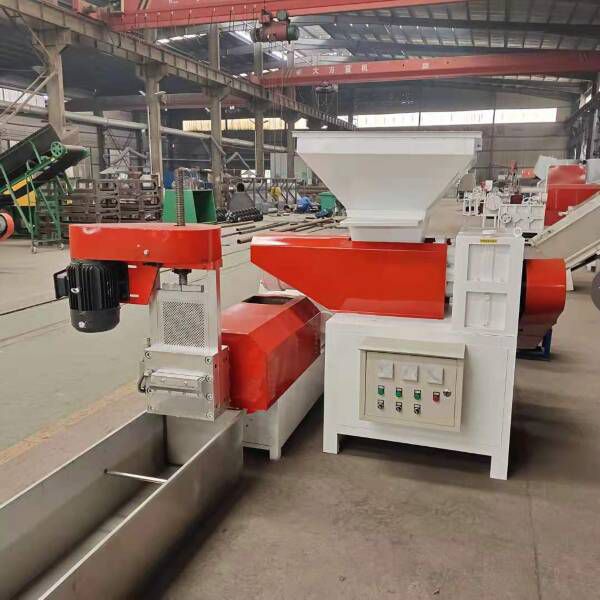

EPS Die Head for pellets


Machine Model

Mother + baby machine

Mother Motor Power kw

Baby Motor Power kw

Capacity kg/h

220

220 + 105

15

5.5

150

245

245 + 105

18.5

5.5

200

300

300 + 135

22

11

300

325

325 + 135

30

11

400

350

350 + 150

37

15

500

400

400 + 160

45

185

700

There are different filter die options with electric motor type,hydraulic type and die no need to replace screen.

 It is automatic,dual screw type which is operated with temperature control function. The EPS pelletizing machine has the layout of upper and down melting screw.The strand die head on the machine is for making spaghetti which will be cooled in the water and then cut.

1)    Screw materials are made by high carbon chromium bearing steel. Its anti-friction and anti-rust are good performance. The actual capacity is by the conditions of the feeding on the screw and the output of mold head,our machine is designed with good screw type which is by our years of experience.
2)    Feeding inlet is designed considering of the different density of the materials. Customer can control the feeding speed.
3)    Temprature control box enable customers know the work conditions such as the temperature of the screw,customers can adjust it depending on the noodles color. it avoid the cases of overheat or melting failure.It is also good for make more transparent particles.
4)    Wire mesh auto exchange device. The device on the mold head make the machine work without stop.
5)    Protection on shelter makes workers safe during work.Eps the shelter on motor and the heater. Also,it makes the machine good looking.

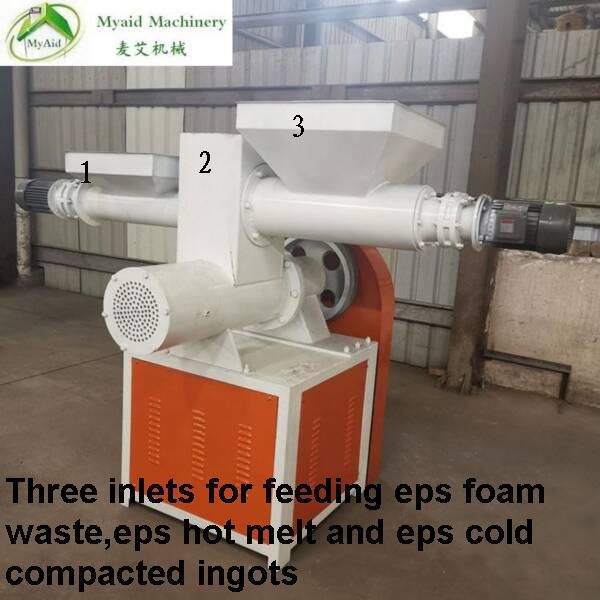

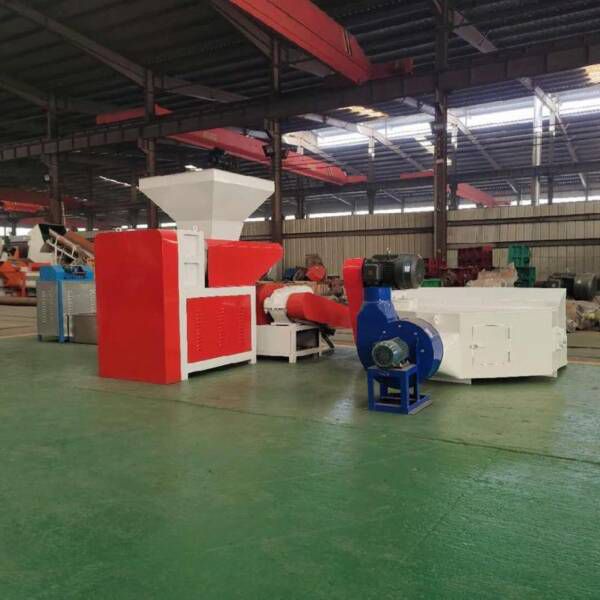

eps pellet machine for recycling all eps waste

Application materials:
used eps foam blocks, expandable polyethylene ,such as various package foam,lunch box, foam scraps,hot meltings and cold compacted ingots or bricks etc.

Procedure: crushing ---> plastify --->spaghetti ---> cooling ---> cutting

control box of eps recycling machine

Advice for choosing your capacity
1)    Economical machine is suitable for beginners or small capacity users.
2)    Model 220 with single/double reducers  is suitable for 10 ton/monthly  capacity.It is with temperature control box and wire mesh auto exchange device, the output particles are with good quality.
3)    Model 320,350 are suitable for big capacity user who knows the filed, it is with small power and big capacity.


Application on EPS waste option

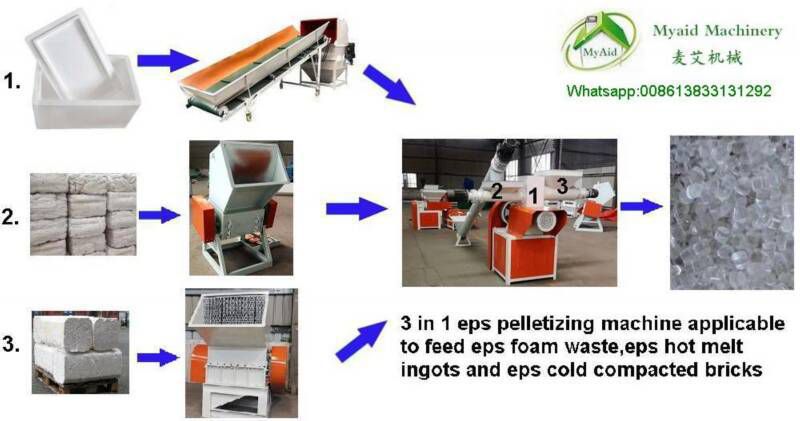

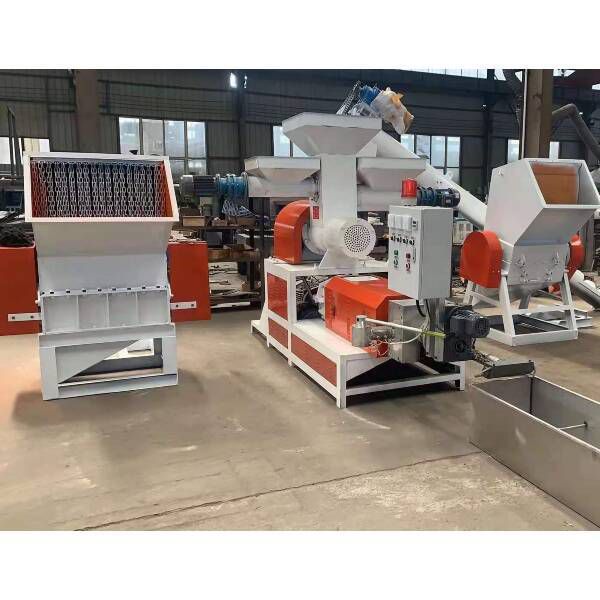

multi-functional eps pelletizing machine

Youtube Video

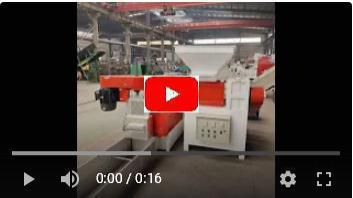

eps pelletizer recycling machine
