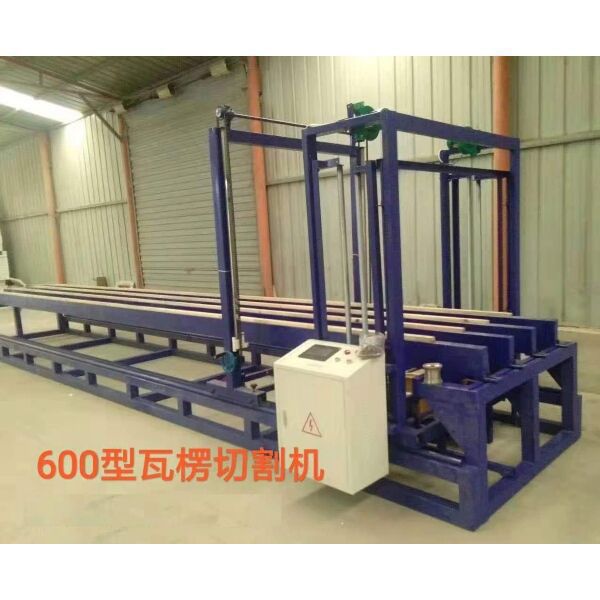

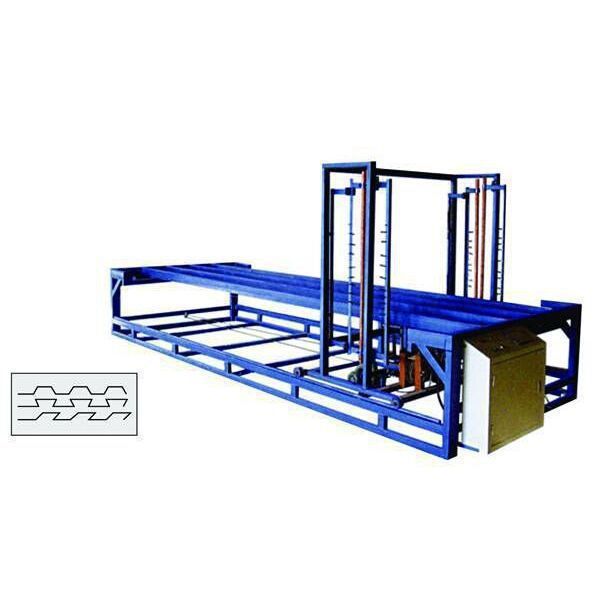

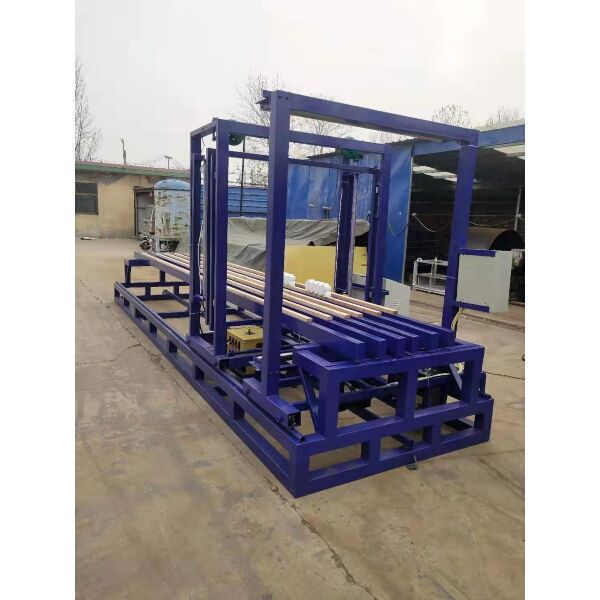

foam corrugation CNC cutting machine

CNC corrugation foam cutting machine is multifunctional cutting machine for shaped foams like dovetail groove,slot,socket and joint shapes etc.

Enquiry

Social Share:

You can also contact us directly to place an order:

WhatsApp: +86 13833131292

Email: jack@insulatedpanelsmachinery.com

Description

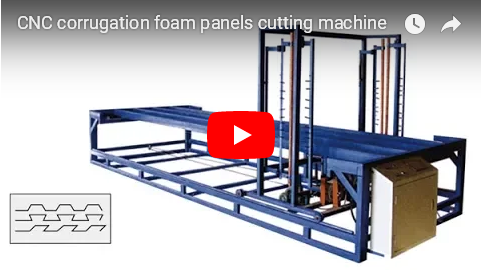

Product Videos

Machine size	5000x1800x900 mm	Cutting Size	3300x1200x1000mm
Power	AC380V/220V	Cutting tool	Hot wire

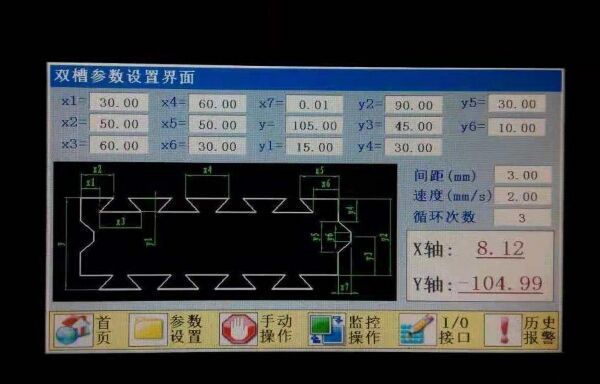

CNC system	Computer CAD,screen touch	Drive type	Step motor
Cutting capacity	0.2-1(m)/min	Drive tool	Ladder type screw

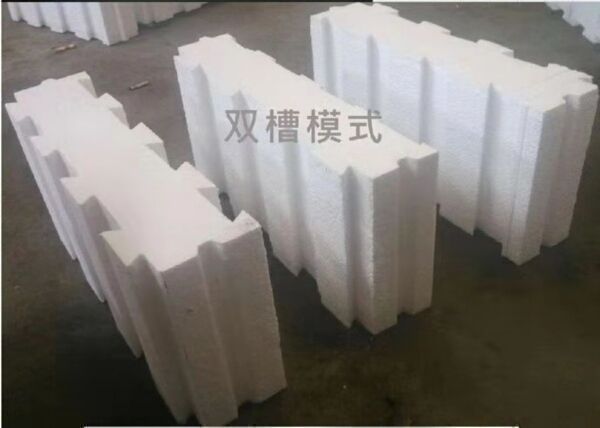

It is called CNC foam corrugation cutting machine for various foam tongue and groove joints,also called CNC foam cutting machine,wire mesh 3D foam panels cutting machine.it applies for styrofoam tongue and groove cutting with horizontal,slots,socket and joint shapes. It multi-functionally cut many slots with big and small dove-tail slot,T slot,rectangular slot,corrugated slot etc.

Foam corrugation CNC cutting machine is CNC control with step motor drived working. Hot wires are stable working with precision. Easily control and good maintenance.

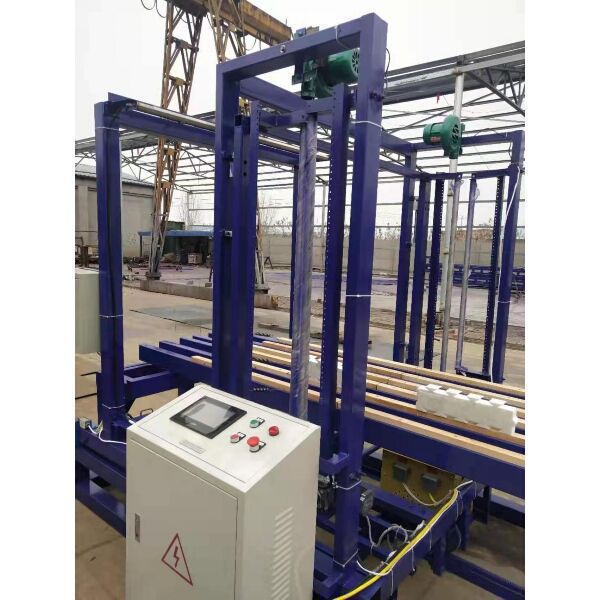

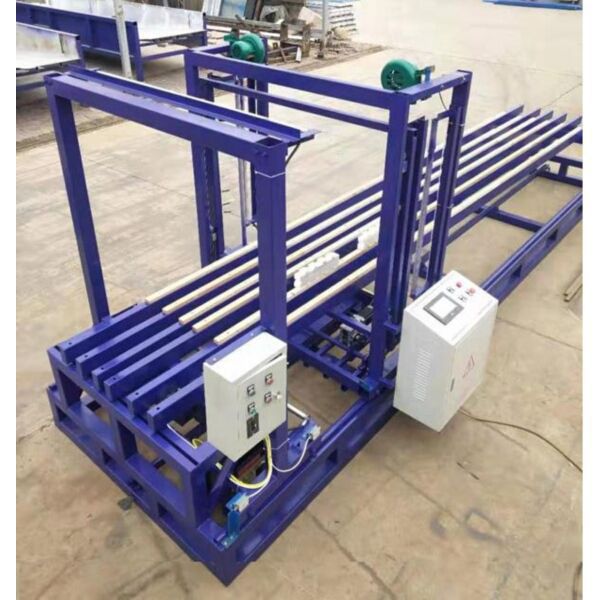

The specialised tongue and groove hot wire cutting machine enjoys with better capacity for cutting styrofoam tongue and groove joints.And the design of hot wires on the cutting machine can work with more precise cutting performance.
