EPS foam crusher machine with single shaft and horizontal hopper

EPS foam crusher machine with single shaft and horizontal hopper

foam plastic crushing machine can crush various foam waste like polystyrene foam package,eps foam block,snack food box,cake box,PU,PF,XPS etc insulation materials,plastic bags and packages etc

Enquiry

Social Share:

You can also contact us directly to place an order:

WhatsApp: +86 13833131292

Email: jack@insulatedpanelsmachinery.com

Description
Product Videos

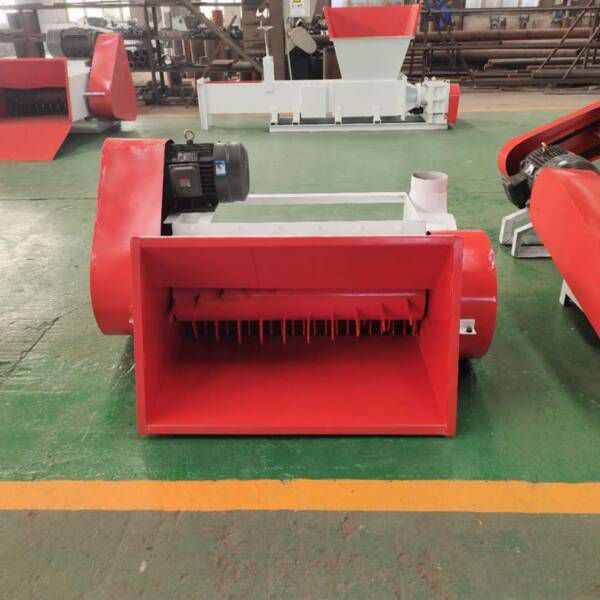

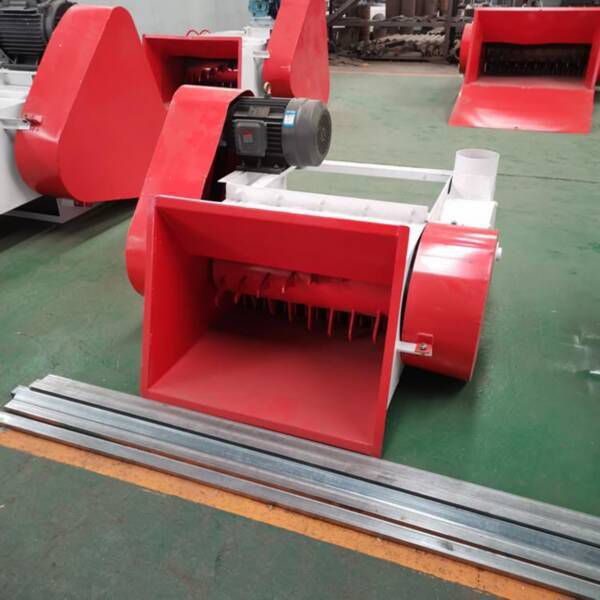

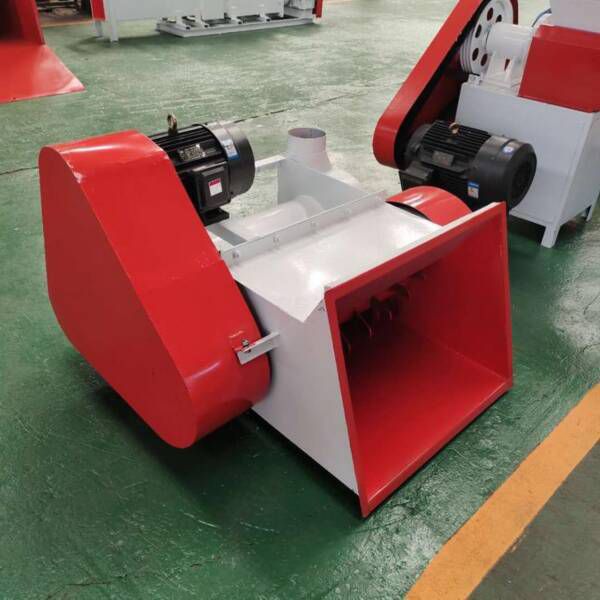

EPS foam crushing machine is single crushing shaft and with horizontal hopper,it can crush various foam waste like polystyrene foam package,eps foam block,snack food box,cake box,PU,PF,XPS etc insulation materials,plastic bags and packages etc,it crushes the waste into small particles which can be recycled.It is ideal recycling machine,cause it saves labor,improves output capacity,saves enviorement.And foam crusher is small cost,low noise,less dust,easy to fix etc.All in all,you can make high profit with small cost.

Model no.	power	capacity	Input size	Remark
800	5.5kw	250-300 kg/h	800*600mm	Light Duty
1000	5.5kw	300-350 kg/h	1000*600mm	Light Duty
1200	7.5kw	400-450 kg/h	1200*600mm	Light Duty
1500	7.5kw	450-500 kg/h	1500*600mm	Light Duty
H1200	15kw	1200-1300kg/h	1200*750mm	Heavy Duty
H1500	15kw	1400-1500 kg/h	1500*750mm	Heavy Duty

For light duty eps crusher,the blower is installed on the eps crusher.

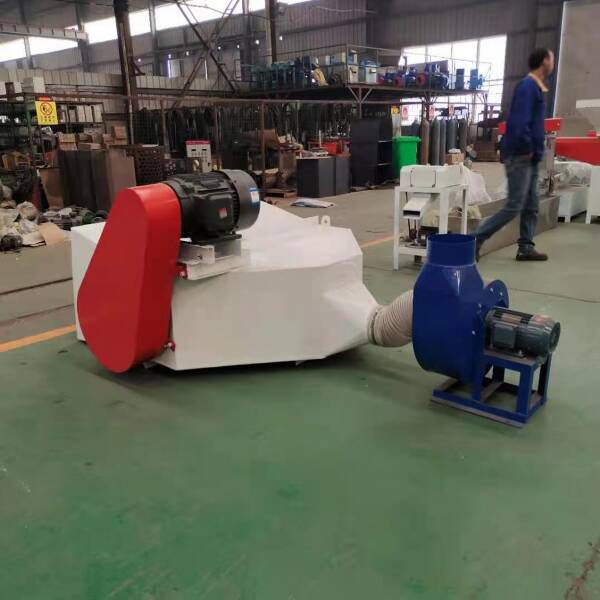

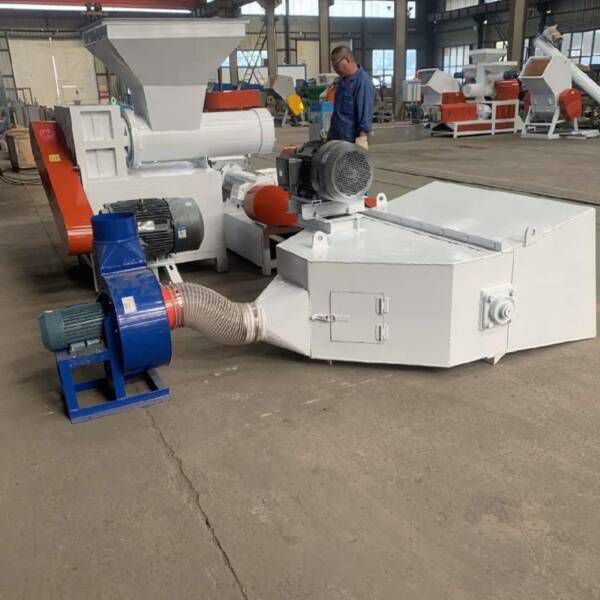

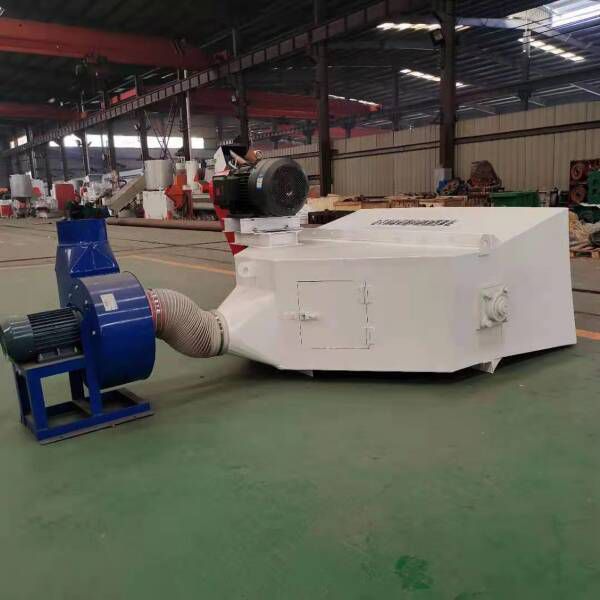

For heavy duty eps crusher,the blower is split from eps crusher.

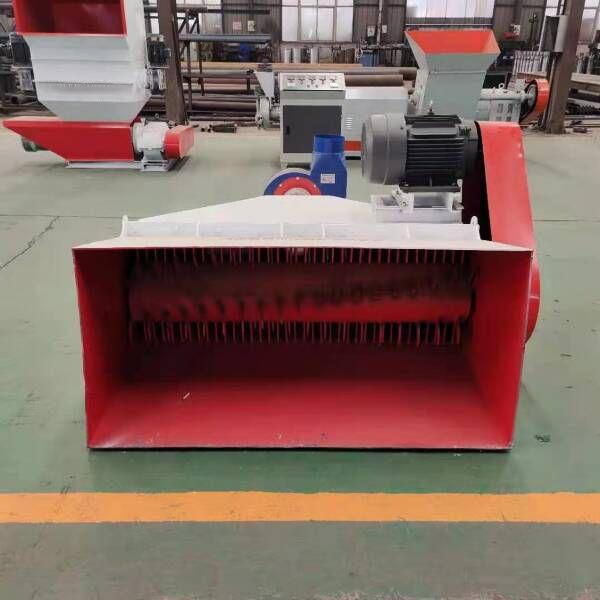

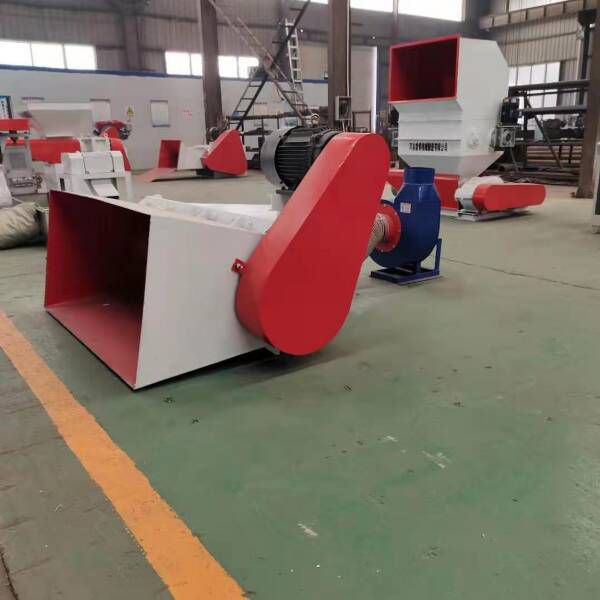

The horizontal eps shredder is simple design and it is durable in working.It can largely reduce the volume of polystyrene waste.We design inlet on the ground for easily feeding the machine and you can see the capacity when machine start working.

Feature

1) Fine eps crusher owns secondary structure,its capacity is better.

2) Horizontal EPS crusher can feed itself automatically.

3) Output work by blower,dust can be reduced.

4) Cutting tools are finished with special method,its life is expanded.

5) Coarse crushing and fine crushing work synchronously.Mini partical size are 5mm .

Application

EPS，XPS，EPP，EPE，PU materials recycling.

Question & Answer

Q: What does the H means in parameter?

A: Each model is available with higher hopper H1200 and common height hopper 1200.

Q: Any benefit to users with higher size hopper ?

A: Yes.It is easier to feed hopper when feeding packaging foam box.

Top EPS shredder factory in China supply stocks of EPS foam shredders with different models,Myaid Machinery welcome clients to visit and see the machine performance.

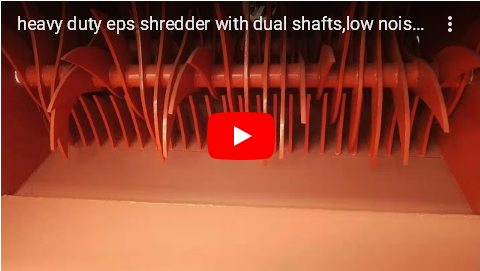

Youtube Video
