full automatic and continuous eps cutting line

full automatic and continuous eps cutting line

continuous eps cutting line can be custom made with vibration device,eps recycling device,wires automatic setting system and package machine to be full automatic in eps foam cutting and packing.

Enquiry

Social Share:

You can also contact us directly to place an order:

WhatsApp: +86 13833131292

Email: jack@insulatedpanelsmachinery.com

Description

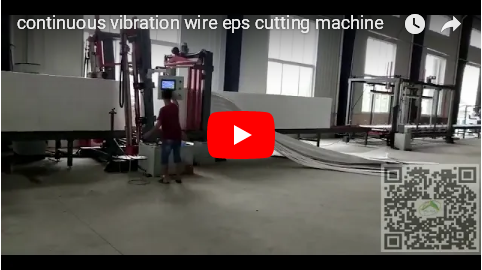

Product Videos

Full automatic EPS cutting line is hot wires vibration working when continuous cutting,it can cut horizontally,vertically,sectionally and trimming cut and pack eps foam automatically in this line.People use this eps cutting line to improve automation and capacity and cut the thermosetting polystyrene and expanded polystyrene blocks.

Feature

1. EPS cutting line is with overturning loading unit and input conveyor.

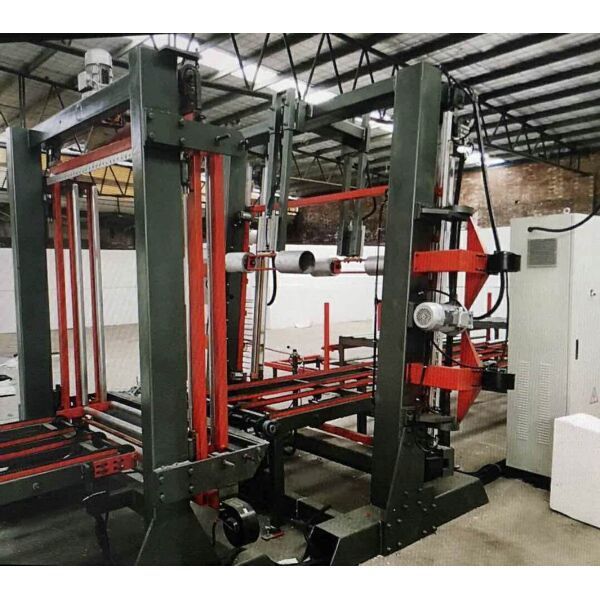

2. Independentally horizontal and vertical cutting frame.

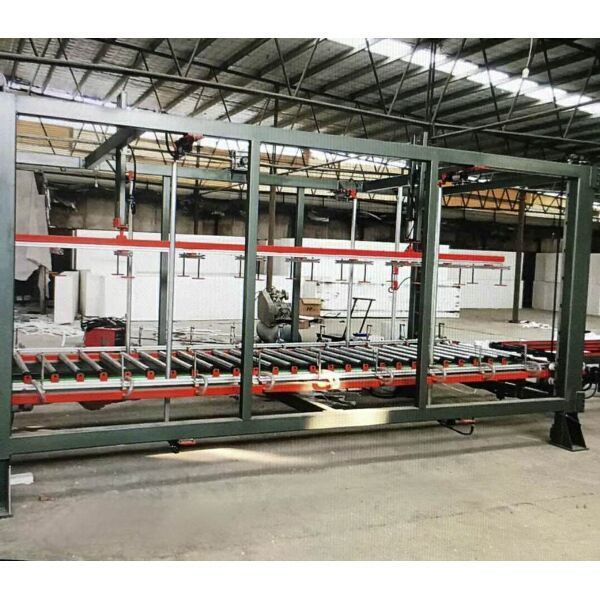

3. Sectional cutting frame.

4. Hot wires vibrating unit.

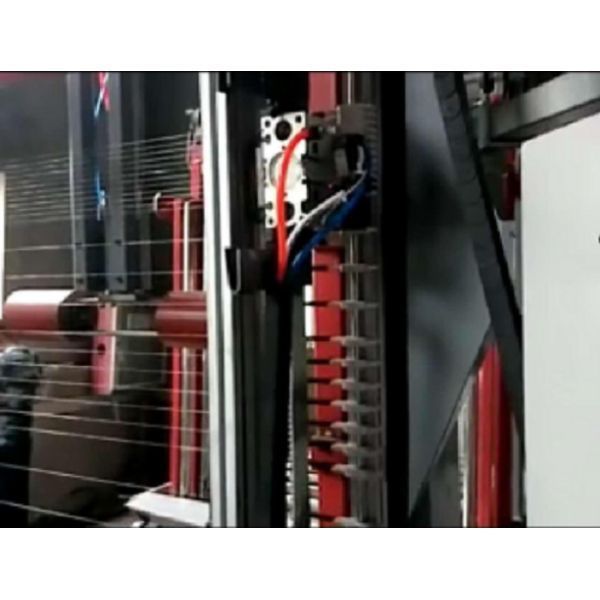

5. Automatic wires setting system--optional.

6. Eps foam crushing recycling unit for trimmings.--optional.

7. Belt type package machine at the end -- optional

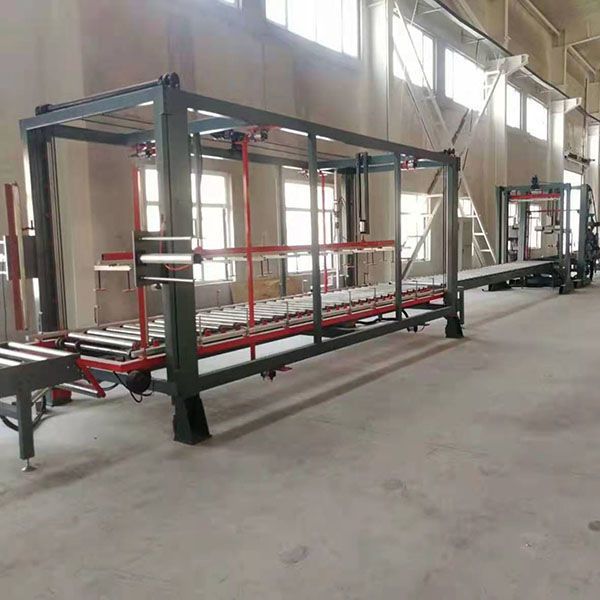

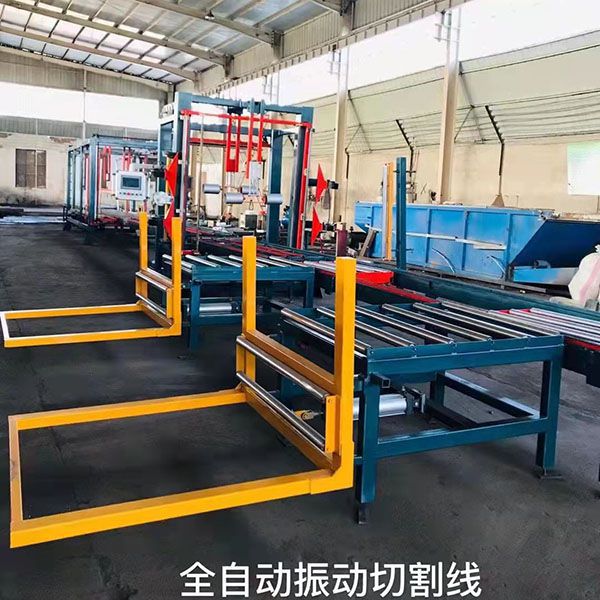

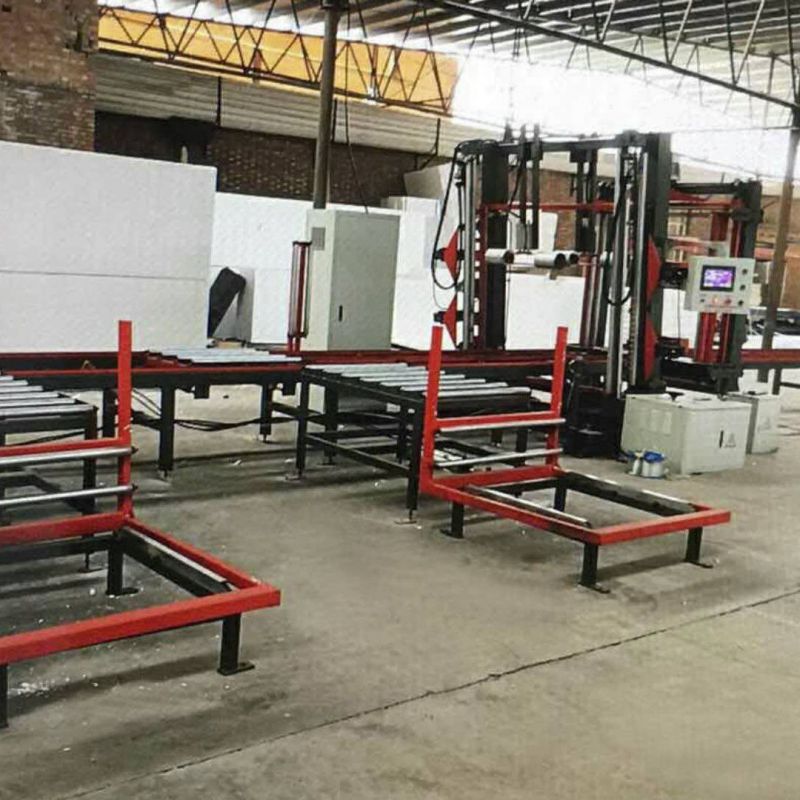

The full automatic EPS block cutting line includes horizontal cutting station,vertical cutting station,down cutting station,rolling over feeding system,wire oscillation system,automatic wire setting system,conveying system,package unit,recycling system etc.

Specification

Items		Unit	PSC/L2000	PSC/L4000	PSC/L6000	PSC/L8000
Cutting Block application	Length	mm	2000	2000-4120	2000-6120	2000-8160
	Width	mm	1000-1300	1000-1300	1000-1300	1000-1300
	Height	mm	500-1260	500-1260	500-1260	500-1260
Mini Cutting Thickness		mm	10	10	10	10
Cutting Density		Kg/m	4-40	4-40	4-40	4-40
Cutting Speed		m/min	0-5	0-5	0-5	0-5
Wires Setting	Horizontal	pcs	50	50	50	50
	Vertical	pcs	20	20	20	20
	Sectional	pcs	20	20	20	20
Material and Diameter of Hot wire		mm	0.4, G20Ni80
Voltage		V	380V,50Hz
Total Installation Power		KW	36.4-38.4
Transformer Power		KW	30
Machine Weight		kg	3500-4000 customized
