automatic eps silo system

automatic eps silo system can start input work automatically when silo is empty,stop work when silo is full and go for next empty silo automatically.Silo output can start until scheduled aging time

Enquiry

Social Share:

You can also contact us directly to place an order:

WhatsApp: +86 13833131292

Email: jack@insulatedpanelsmachinery.com

Description
Product Videos

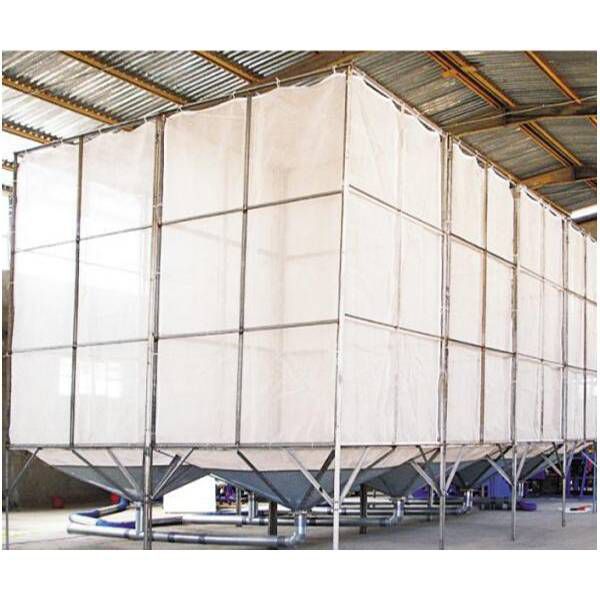

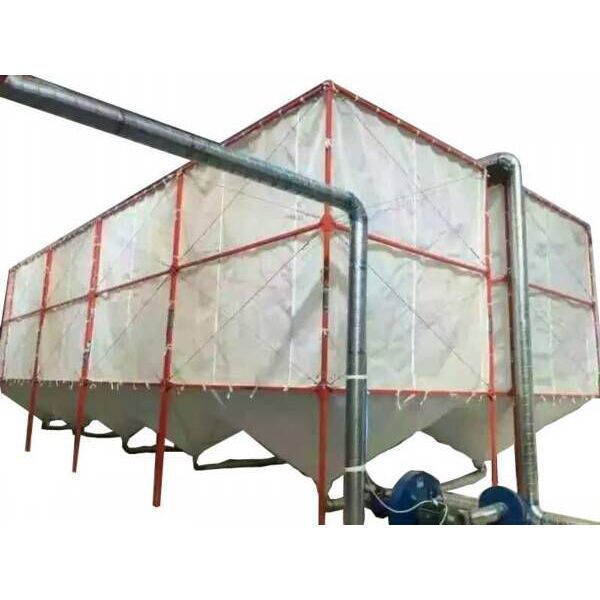

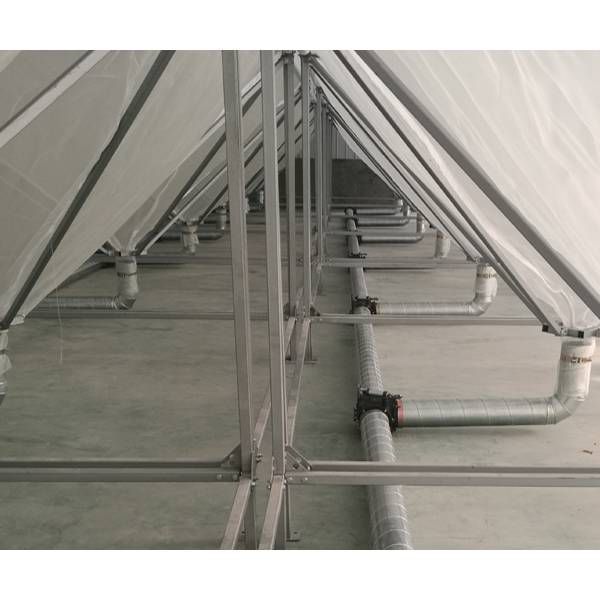

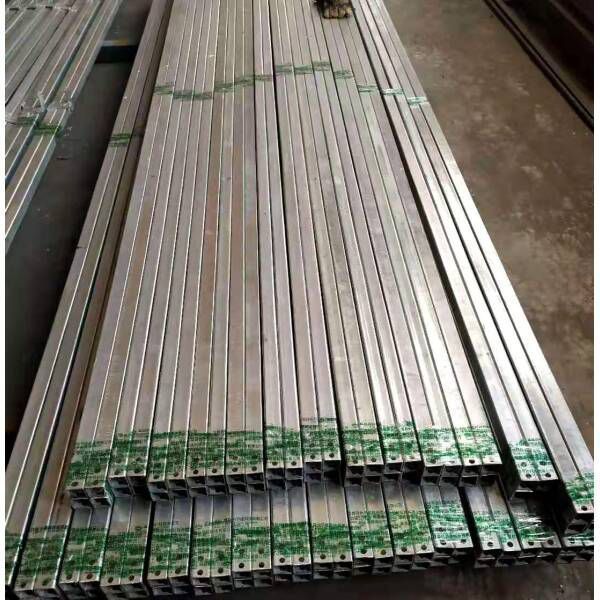

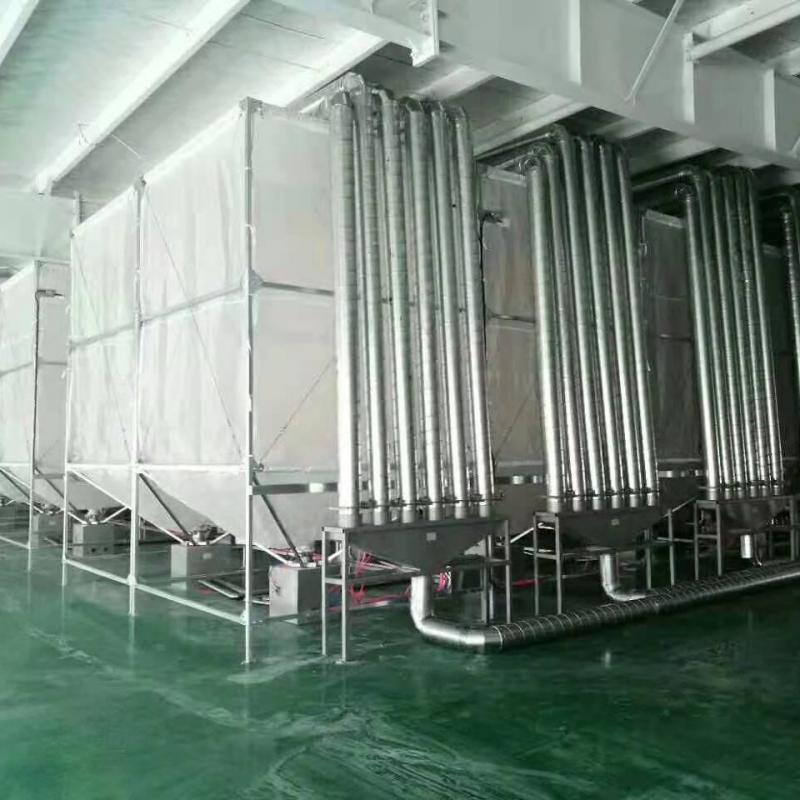

Automatic eps silo system include silo net,silo rack,controlling cabinet,photosensor,spiral pipes and pipe fittings,fan,valve etc.Pre-expanded EPS balls from pre-expander will store in eps silo,then, the eps balls come out of silo until it is fully aged.With intelligent controlling system,operation work on eps silo will be easy,save labors and capable to control more silos instead of manual operation.

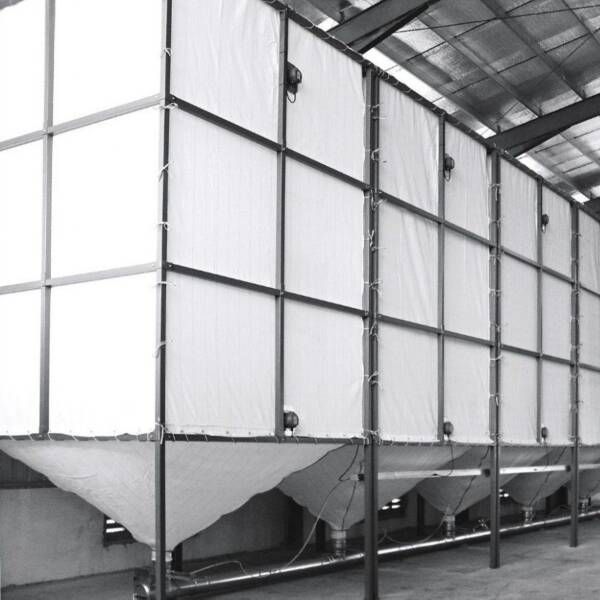

We have EPS silo with nylon materials for pre-expanded EPS materials.

We have also EPS silo with canvas materials for recycled EPS materials.

How automatic eps silo system work?

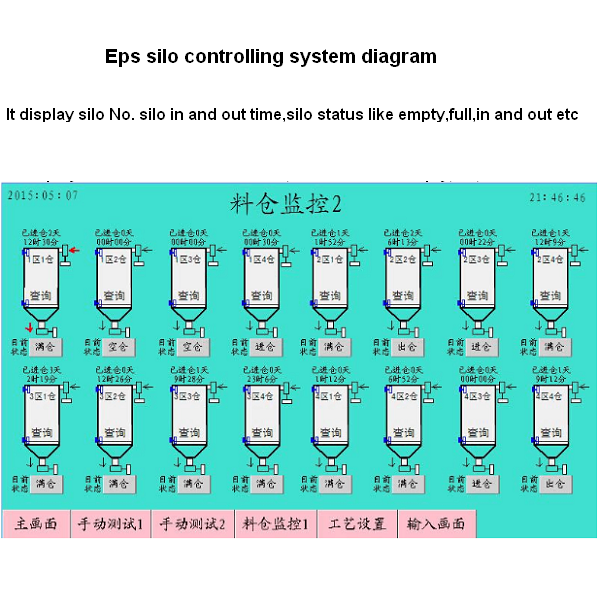

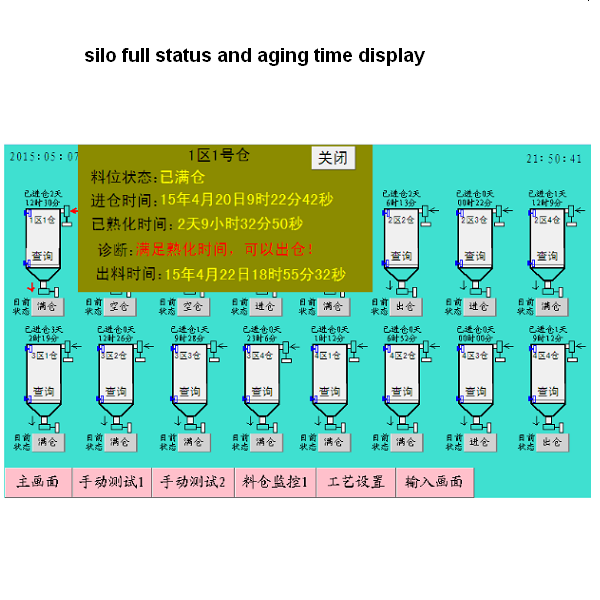

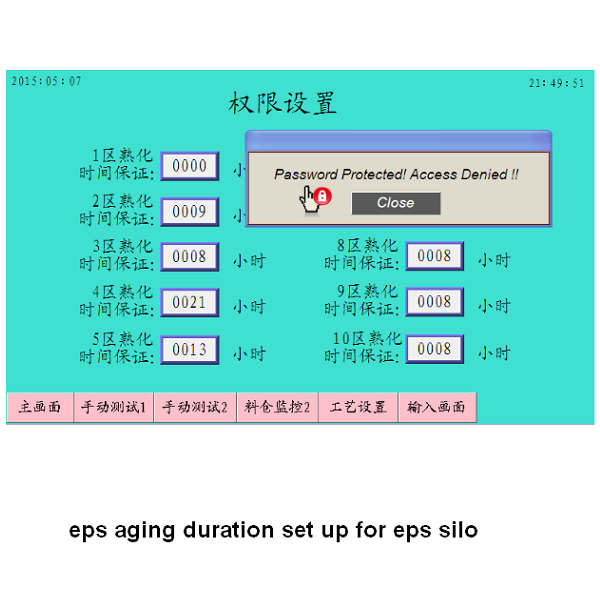

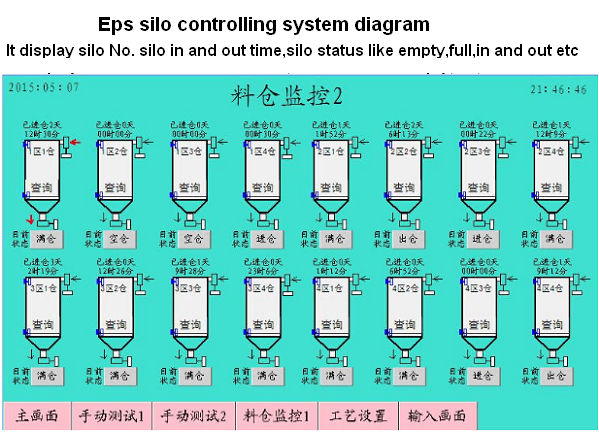

For single silo,automatic system can monitor and display its status as empty or full.The valve and blower for it will stop when it is full,start work for next silo automatically thru the set up of controlling system.Until the scheduled duration,silo with preset time will automatically ouput the aged balls.The work can be cycled.There is alarm when single/multi silo is/are full. The alarm can also stop your output work when you want to output specific silo,cause the balls will not come out of silo until the scheduled aging duration finished.You can enquire silo status,work time etc,and set up the aging duration,on/off specific multi silos,arrange operation authority etc.

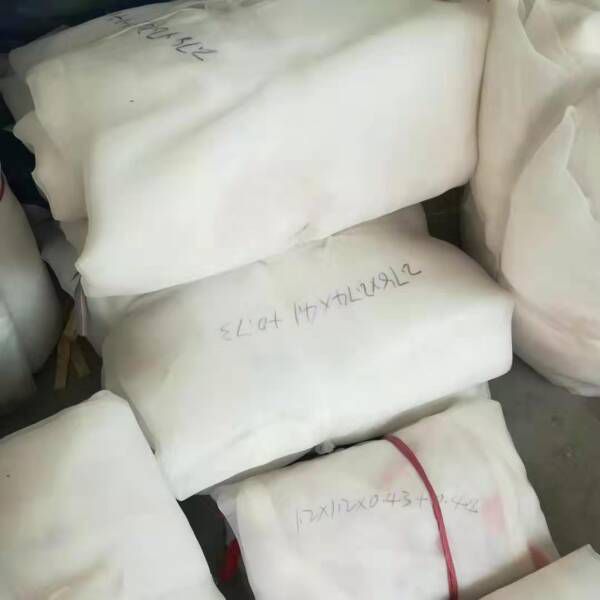

We offer nylon materials eps silo bag for pre-expanded eps beads.

Size	Materials	Grade
2.5m2.5m (4+1)m	Nylon and cloth	Static free and normal
2.5m2.5m(2.5+1)m	Nylon and cloth	Static free and normal
Customized	Nylon and cloth	Static free and normal

We offer canvas materials eps silo bag for recycled eps materials.

Size	Materials	Application
2.5m2.5m (4+1)m	Canvas	Recycled EPS Storage
2.5m2.5m(2.5+1)m	Canvas	Recycled EPS Storage
Customized	Canvas	Recycled EPS Storage
