Introduction

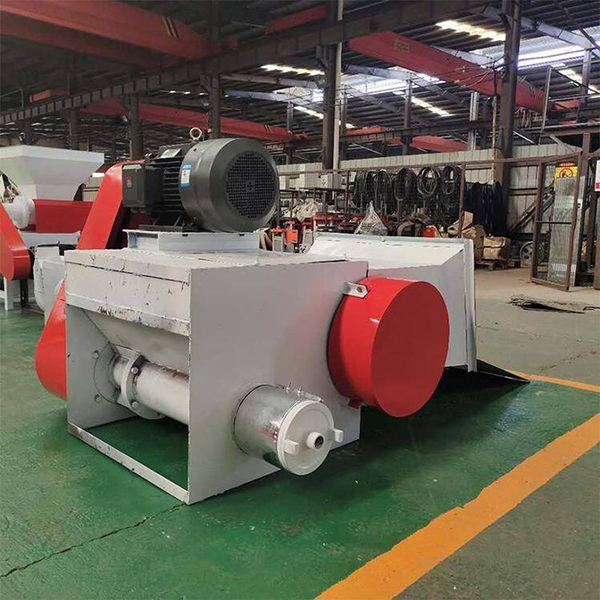

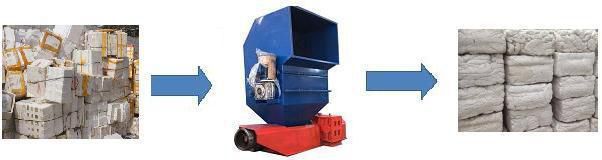

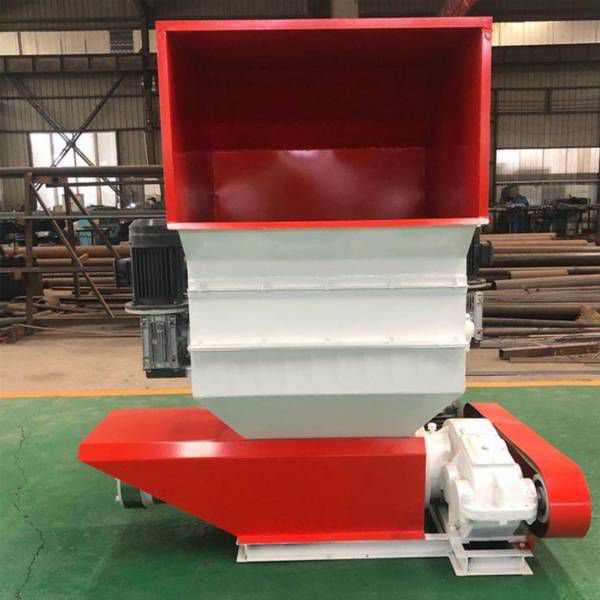

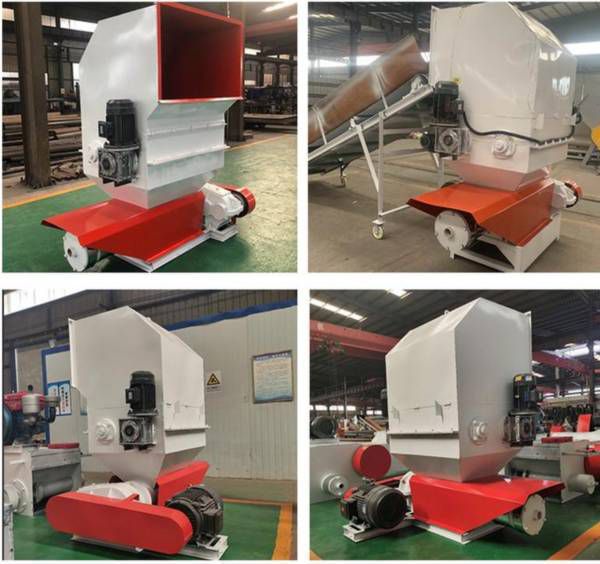

EPS melting machine works on foam crushing and melting into lump,it is two in one machine which application is for melting eps foam waste. The eps waste feeds into the machine inlets,they will be crushed by the two shafts inside machine and then heated and melted by the screw which plastify the crushed scraps, lump will come out of the machine.

Item	Model No.	Crushing shaft Qty	Machine Size（mm）	Hopper size (mm)	Motor Power	Capacity Kg/h

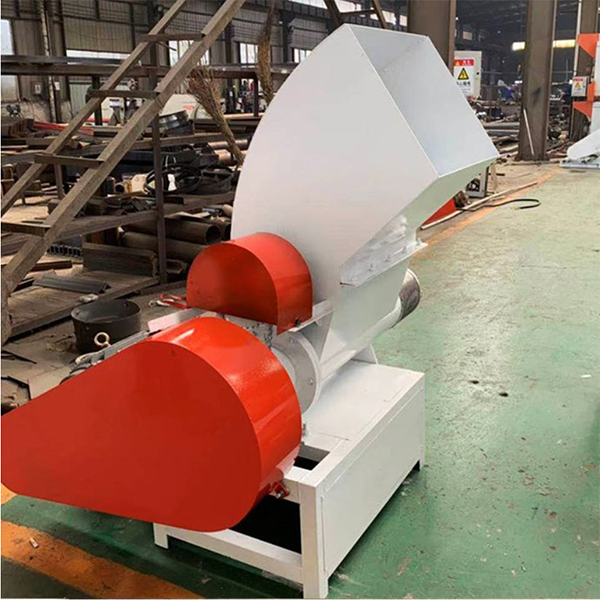

Horizontal hot melt machine	800	1	15801300850	800*600	18.5KW	150
Horizontal hot melt machine	1000	1	19001580900	1000*700	22KW	200
Vertical hot melt machine	220	1	15008001450	600*500	15KW	140
	320	2	220020001500	1000*800	Crushing motor:3KW*2set Main motor：18.5KW With reducer	300
	350	2	220020001500	1200*800	Crushing motor:3KW*2sets Main motor:22kw With reducer	400

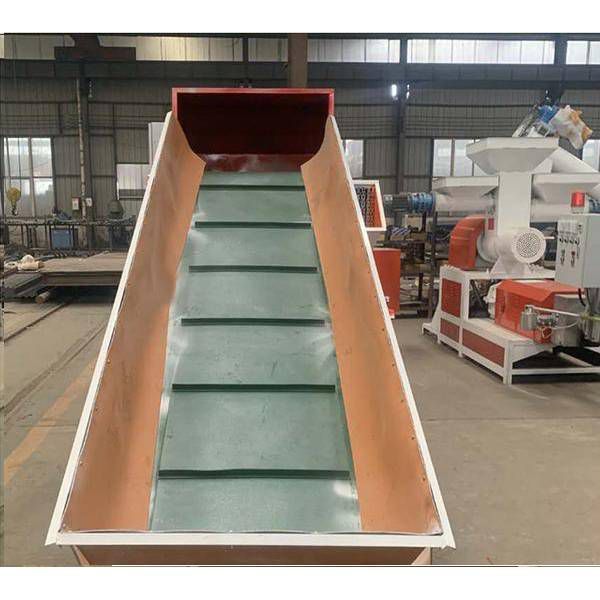

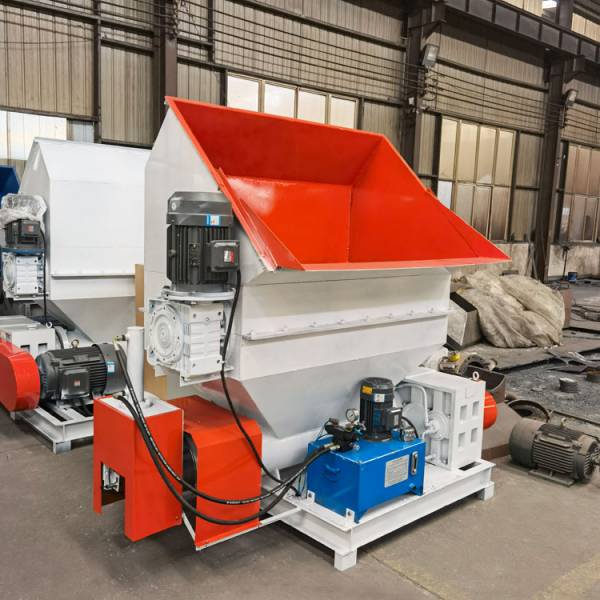

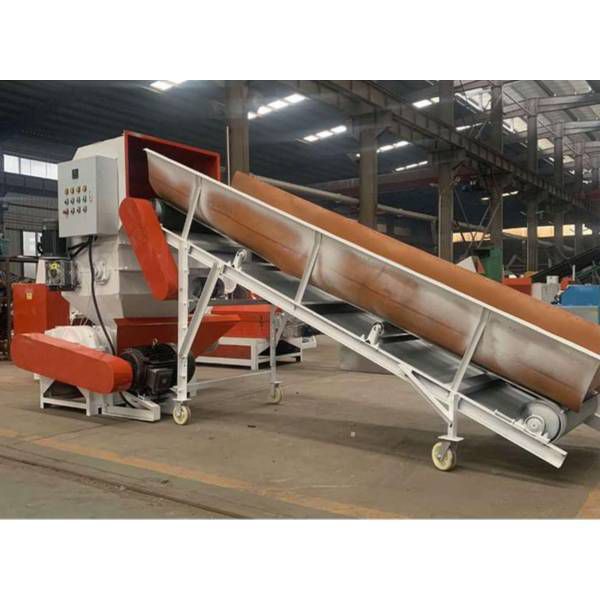

Temperature control unit,motor are standard configuration. Model 320 and 350 is optional with conveyor feeding,hydraulic cutter etc.

Application

The EPS melting machine recycles with PS food container,cake box,foam package,insulation materials,eps foam materials,eps panels etc.

Machine advantage

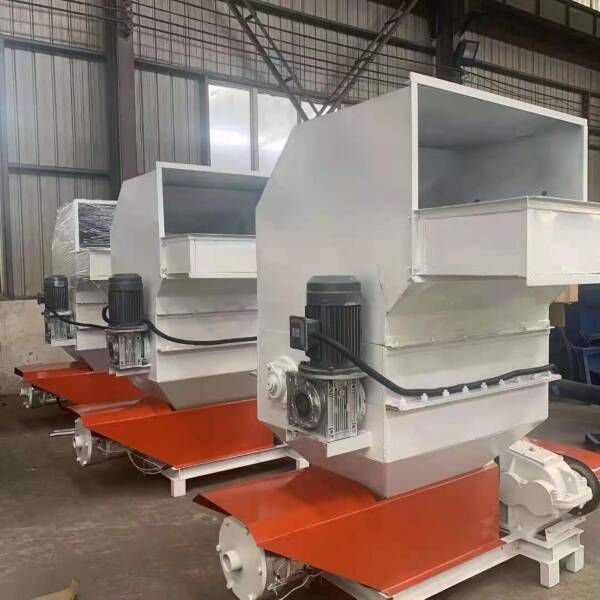

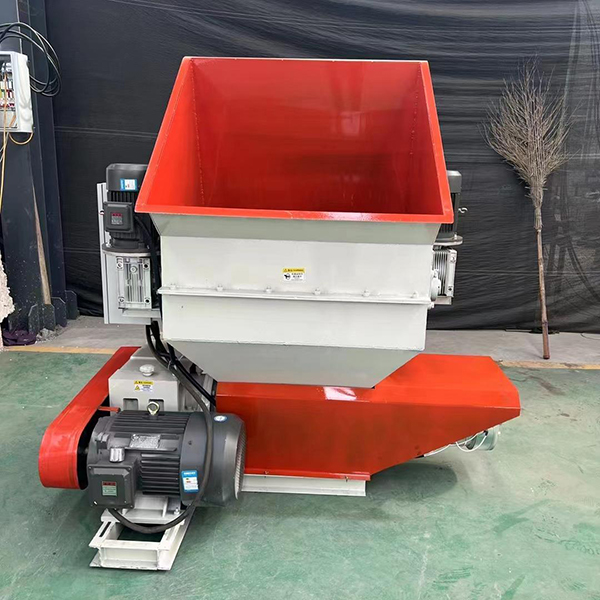

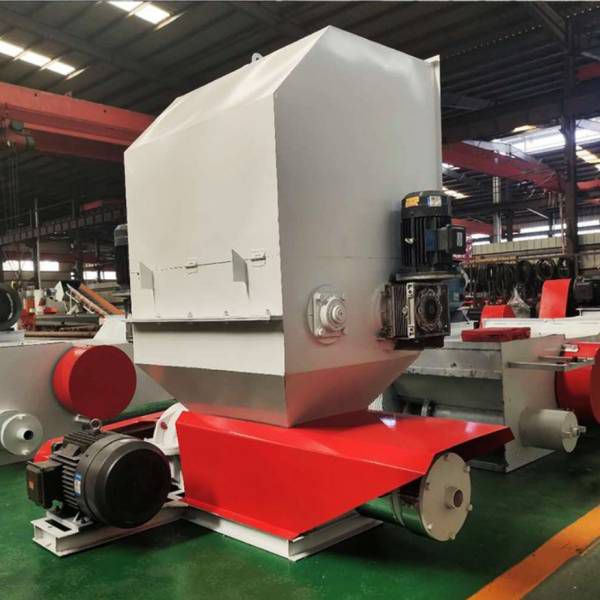

The 320,350 model of EPS crushing and hot melting machine takes dual shafts for crushing foam waste.The design of dual shafts are low noise,fast motion,no materials returning.The shaft on melting unit works with motor reducer,the eps melting machine functions with temperature control,and the motor on/off,overload protection are all available on control box which makes work simple.

Business advantage

Eps melter is widely used in recycling the eps foam waste,it is small investment and lower demand for electricity,it is good business for the recycling factory.

Myaid Machinery supply machines made from big scale EPS melting machine manufacturer in China.welcome to enquire from us.

Question and Answer

Q: What is the heater options?

A: There is electric heater and no heater.Two options.

Q: What are the advantages of the two heater options?

A: Without heater machine needs no pre heating time; With heater,user can get higher temperature when melting.

Q: Can users have all melting machine with heater but user have option to turn it on or off when operating?

A: Yes.Users can choose to turn heater on/off when feeding different EPS materials.
