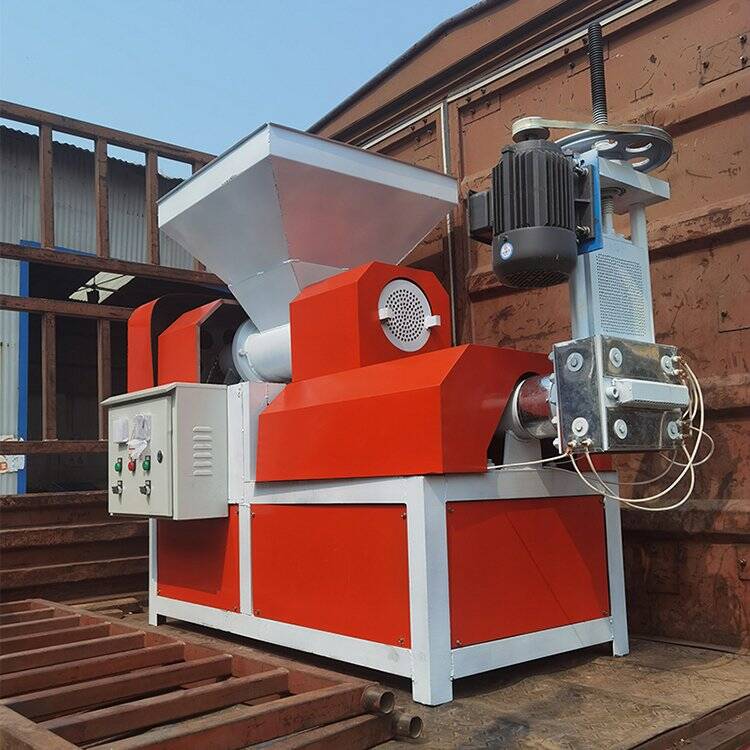

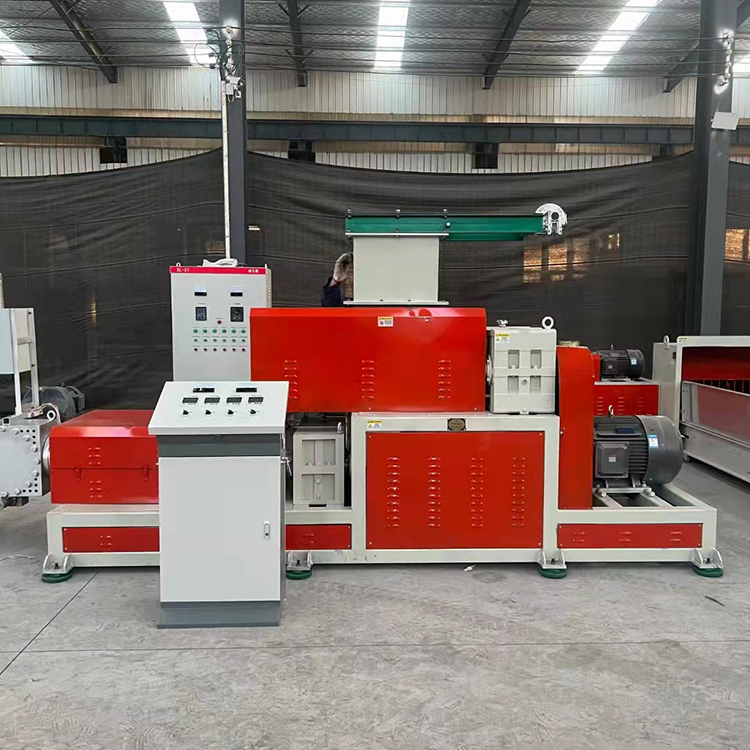

Heavy duty foam granulator machine can feed with EPS loose foam,EPS compression,EPS hot melt materials.No screen mesh on strand die.
WhatsApp:
+86 13833131292
It is advised that normal foam granualtor feed EPS loose foam,heavy duty foam granulator machine feed EPS loose foam,EPS cold press and hot melt.
To solve the problem of frequently replacing screen mesh on strand die,we invented meshless die head which need no filtering screen mesh.It works automatically removing the dust very well.We have machine models with different die head for your preference.
|
Machine Model
|
Mother + baby machine
|
Mother Motor Power kw
|
Baby Motor Power kw
|
Capacity kg/h
|
|
245
|
245 + 105
|
22
|
7.5
|
200
|
|
325
|
325 + 135
|
37
|
15
|
400
|
|
350
|
350 + 150
|
45
|
18.5
|
500
|
|
400
|
400 + 160
|
55
|
185
|
700
|
|
There are different filter die options with electric motor type,hydraulic type and filter die no need to replace screen.
|
||||
Feature of Heavy duty foam granulator:
1) The barrel and screw are wear resistant and hardened.The barrel is made with seamless steel pipe; screw with Manganese steel materials,so,it can make the foam with better heating and more durable for machine life.
