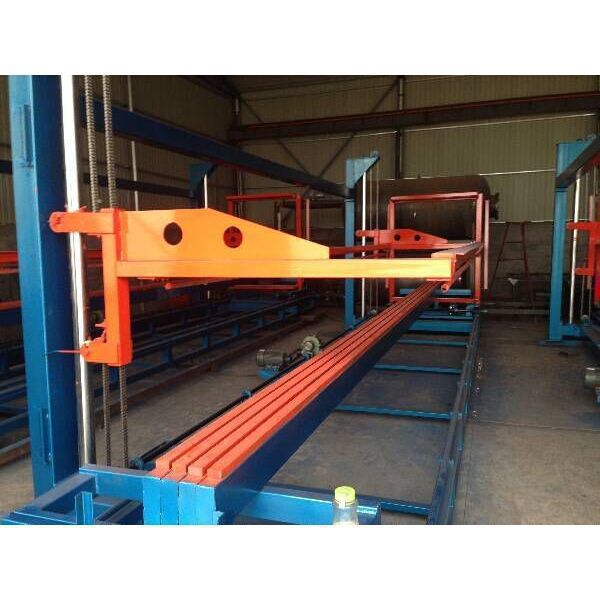

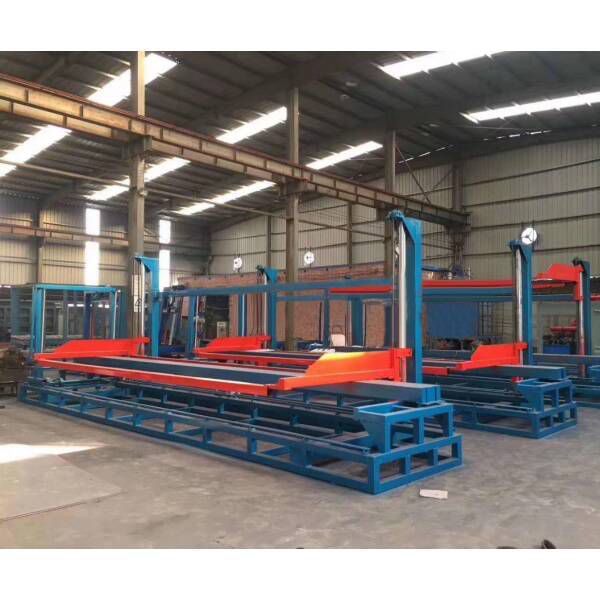

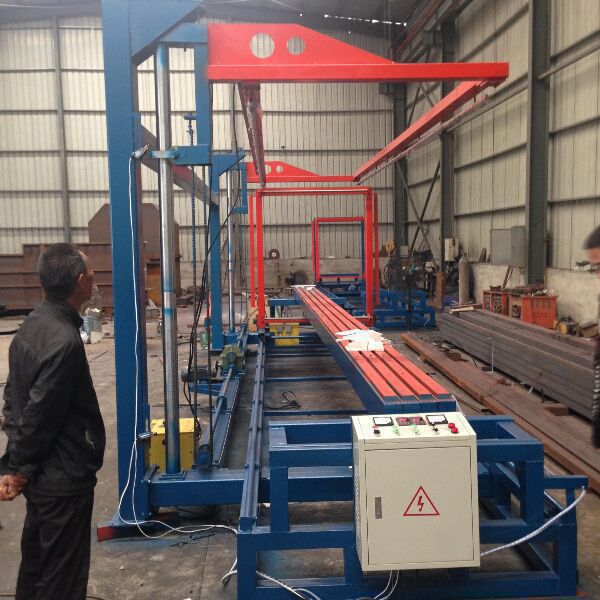

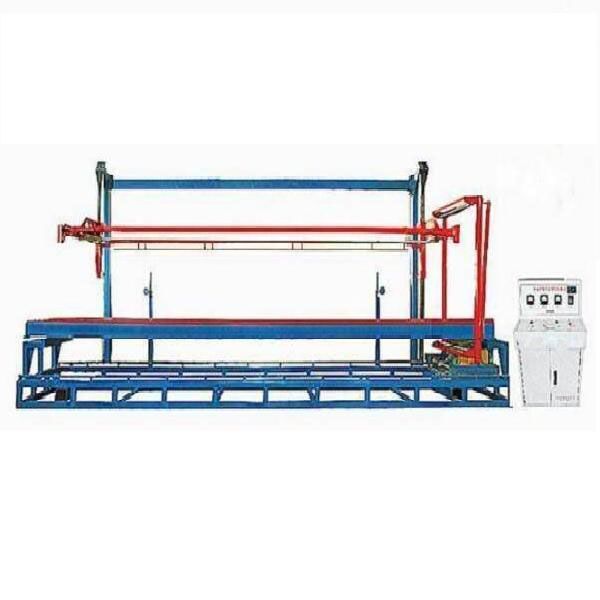

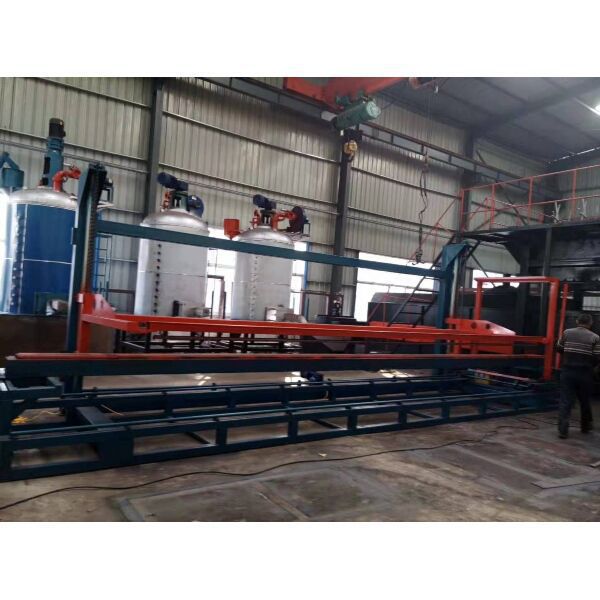

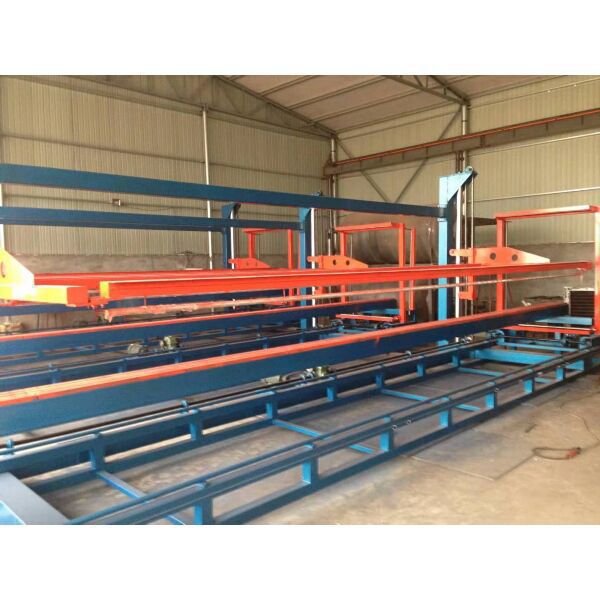

Cantilever type EPS cutting machine for insulation sheets

Cantilever type EPS cutting machine for insulation sheets

cantilever type eps cutting machine is for big capacity of eps foam panels work.It is controlled by PLC control box.

Enquiry

Social Share:

You can also contact us directly to place an order:

WhatsApp: +86 13833131292

Email: jack@insulatedpanelsmachinery.com

Description

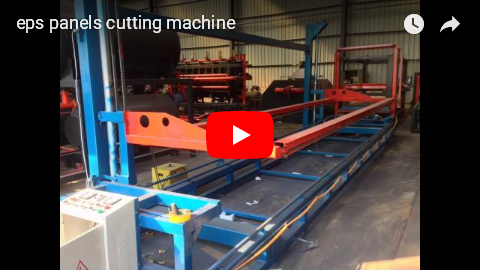

Product Videos

Model No.	PSQ200C	PSQ400C	PSQ600C	PSQ800C
Max cutting size	200012501250 mm	400012501250 mm	600012501250 mm	800012501250 mm
Machine power	22.3kw	22.3kw	22.3kw	22.3kw
Machine size	440026003250 mm	640026003250 mm	840026003250 mm	1040026003250 mm
Machine weight	1300kg	2000kg	2800kg	3200kg
Customized making is available.

Feature

1.The main frame of the EPS cutting machine is welded from square profile steel, with strong structure, high strength and no deformation;
2.While C type eps cutting machine adopt frequency control of motor speed and voltage adjustment device, realized multi-wire cutting and speed control. .
3.The hot wire eps cutting machine adopts converter speed governing advantageous in stable moving, large range(0-4m/min)of step-less speed governing, suitable for requirements of low-speed cutting and fast cutter-retract;
4.Voltage adjustment：Adopts 10KVA multi-tapped special transformer for adjustment with wide adjustable range and multiple voltages for the eps cutter.
5. The eps cutting machine has horizontal, vertical and cross cutting devices, and can realize 3-direction cutting, i.e. horizontal, vertical and cross cutting.

6.The horizontal cutting wires can be up to 100 pcs capacity.

7. Myaid machinery as famous eps cutting machine supplier from China,we can customise the machine.
