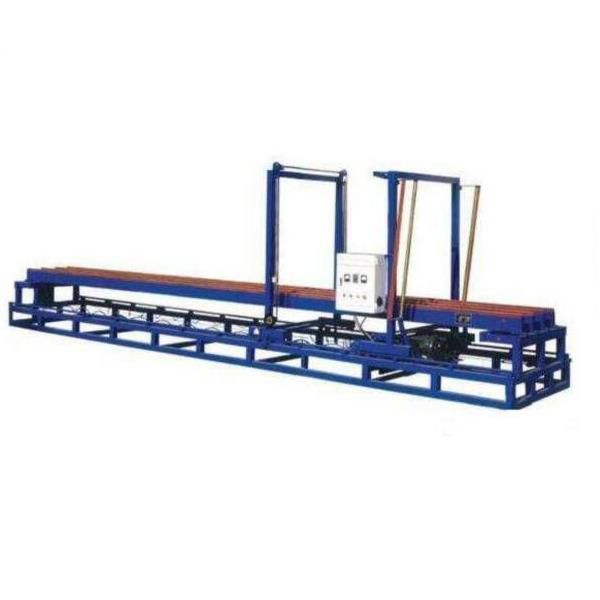

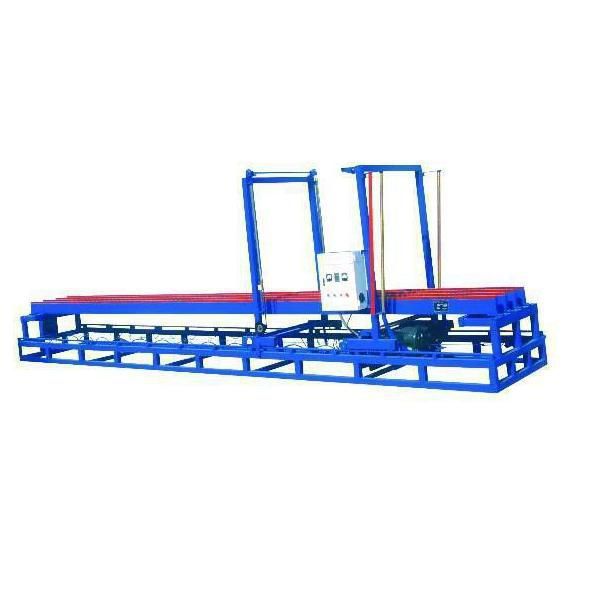

simple hot wire cutting machine

The simple type eps cutting machine is for eps foam panels cutting with horizontal wires controlled by PLC,down cutting wire is by manual control.

Enquiry

Social Share:

You can also contact us directly to place an order:

WhatsApp: +86 13833131292

Email: jack@insulatedpanelsmachinery.com

Description
Product Videos

Specification

Item	Unit	PSQ300	PSQ600	PSQ800
Cutting size	mm	3000x1250x1250	6000x1250x1250	8000x1250x1250
Voltage transformer	kva	10	10	10
Total power	kw	11.55	11.55	11.55
Machine size	mm	5800x1900x2480	8800x1900x2480	10800x1900x2480
Machine weight	kg	1200	1800	2200

Feature

1.The main frame of the eps cutting machine is welded from square profile steel, with strong structure, high strength and no deformation;
2.While hot wire cutting machine adopt frequency control of motor speed and voltage adjustment device, realized multi-wire cutting and speed control. .
3.The eps cutting machine adopts converter speed governing advantageous in stable moving, large range(0-4m/min)of step-less speed governing, suitable for requirements of low-speed cutting and fast cutter-retract;
4.Voltage adjustment：Adopts 10KVA multi-tapped special transformer for adjustment with wide adjustable range and multiple voltages for the eps cutting machine.
5. The hot wire cutting machine has horizontal, vertical and cross cutting devices, and can realize 3-direction cutting, i.e. horizontal, vertical and cross cutting.

Nichrome wires

The cutting wires for the EPS cutting machine are nichrome wires cr20ni80 which can be heated by the electricity,it can melt and cut the expanded polystyrene foam with high temprature. NiChrome Wire (NiCr) is also called hot wire in eps industry.It is good performance in working as cutting foam. it is resistant to corrosion and oxidation,and it can reach high temperature in just seconds.The NiChrome wires can be with high tensile strength and high melting points.It has perfect balance between energy requirement and good tensile strength.

Warranty clause

We give one year warranty service.Parts are available free within one year in case of quality problem.
