EPE Recycling Machine - EPE foam pellets machine

EPE Recycling Machine - EPE foam pellets machine

EPE recycling machine can feed EPE foam waste and make EPE recycled pellets

Enquiry

Social Share:

You can also contact us directly to place an order:

WhatsApp: +86 13833131292

Email: jack@insulatedpanelsmachinery.com

Description
Product Videos

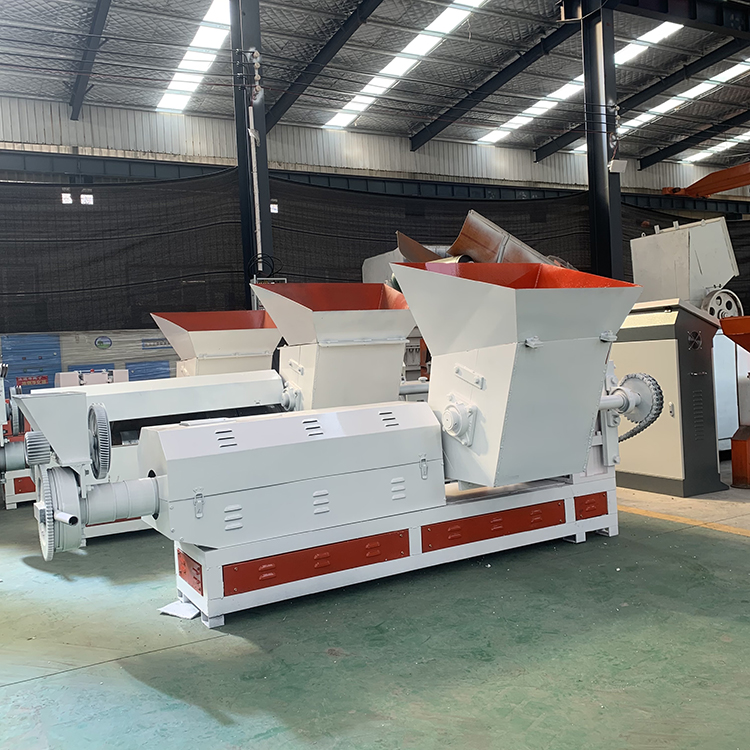

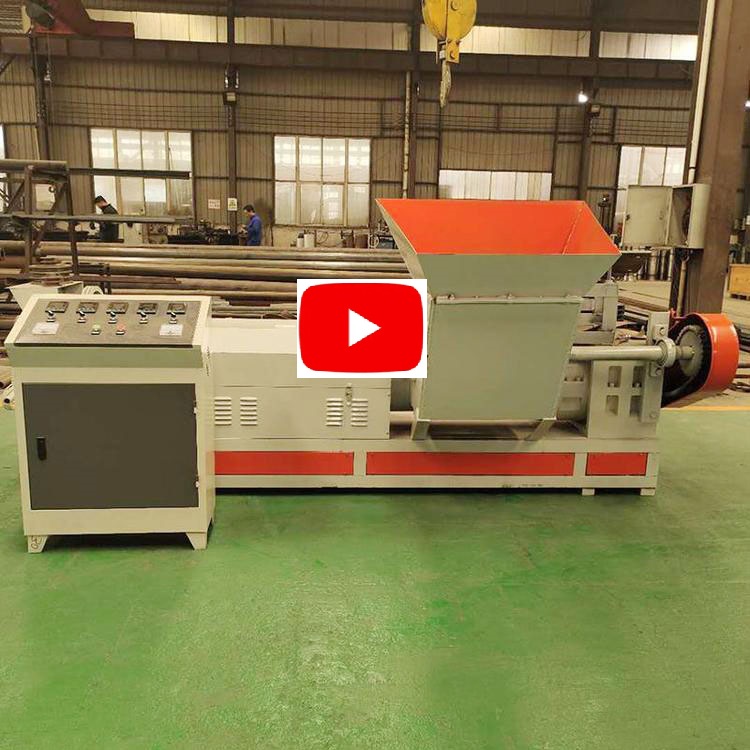

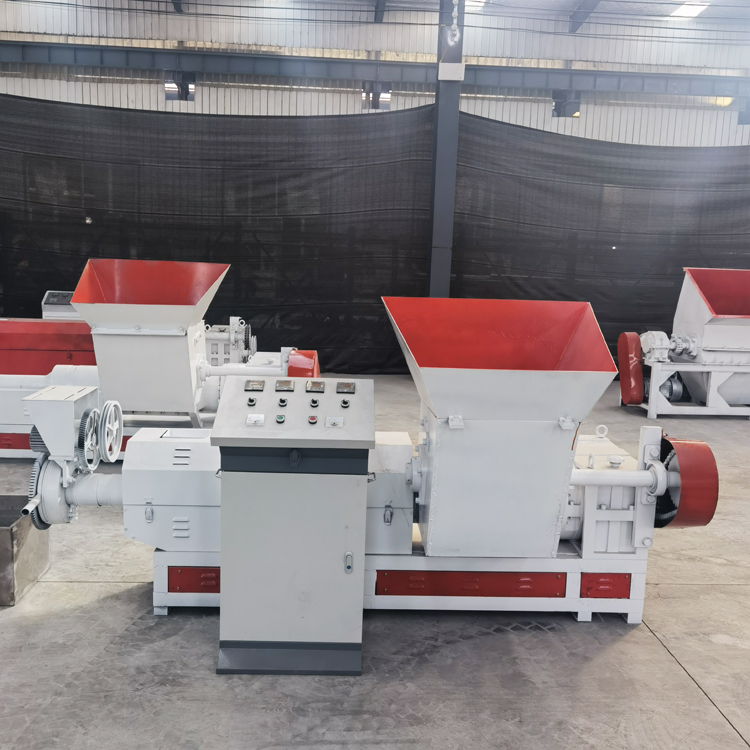

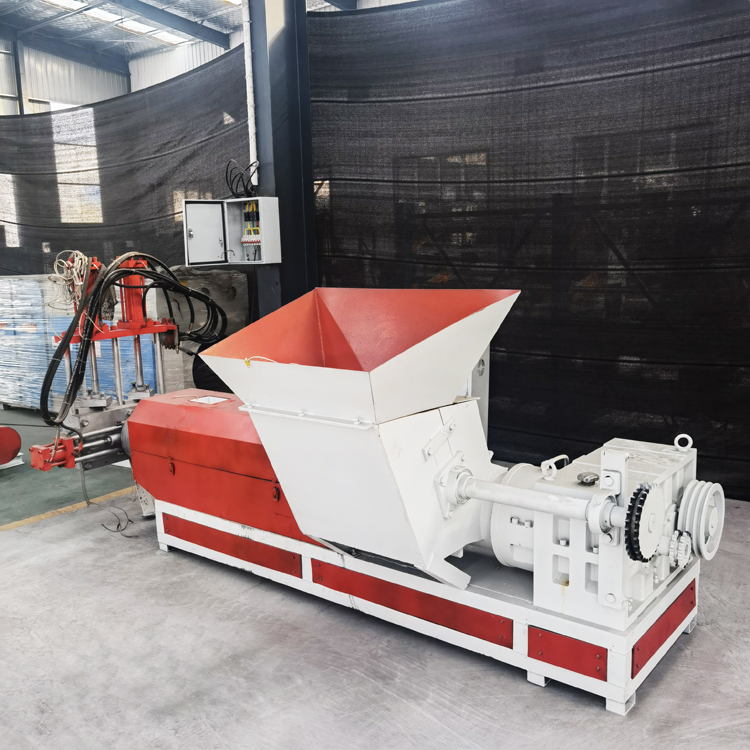

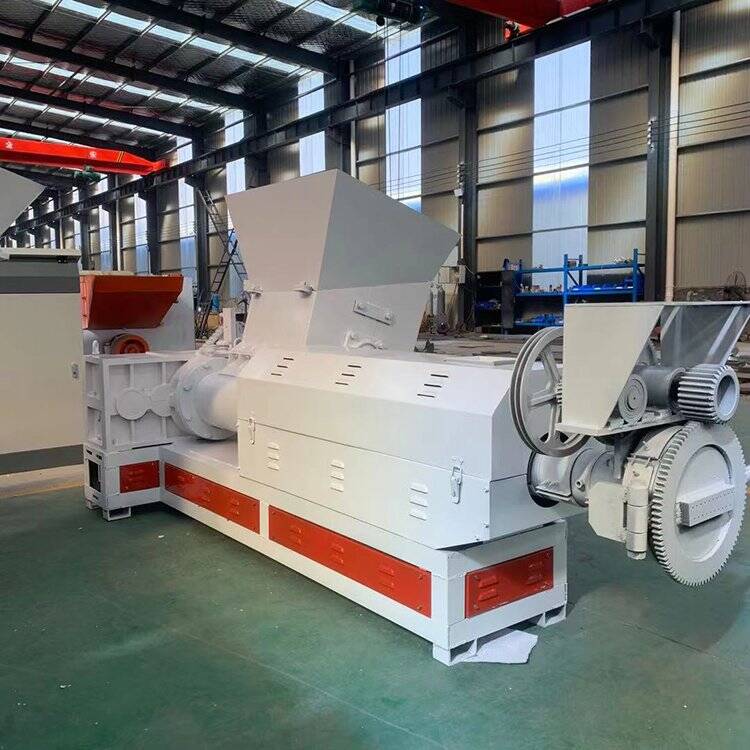

EPE recycling machine can recycle the Expandable Polyethylene foam materials which widely exist in EPE packing and protection industry.The EPE pellets machine works with single screw shaft and it can feed, crush,melt,extrude,cooling and cut the strand into EPE pellets.These recycled pellets can be raw materials for EPE foam making again.

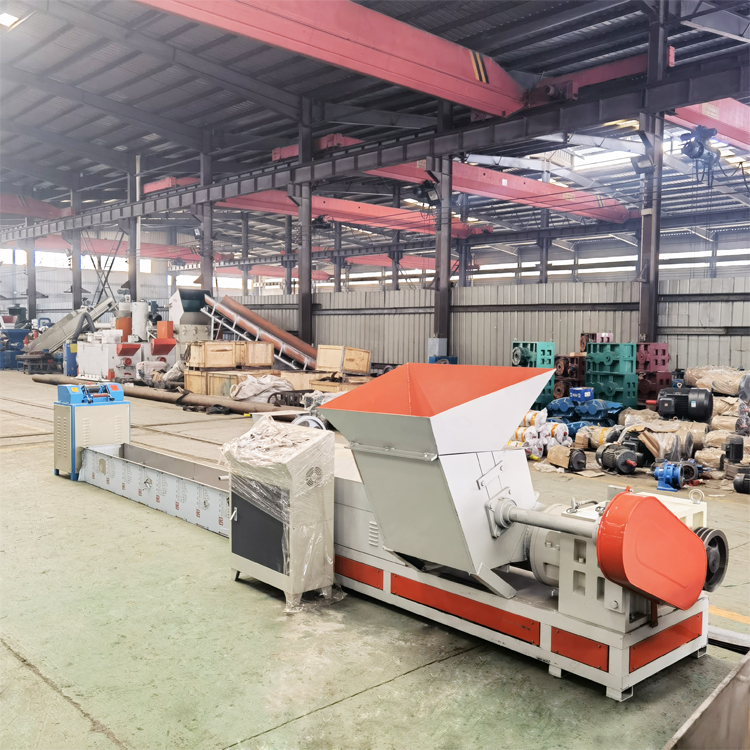

The whole line consists of host machine,stand die head,control box,cooling tank,cutter,blower and storage barrel etc.The screen filter for removing dust is optional with gear type and hydraulic pressure type.

The Heating temperature of EPE recycling machine can be auto controlled and they are displayed on control box.

The gear surface of reducer for EPE foam pellets machine is hardened,so, machine is durable.

Machine Model No.	105	125	135
Screw Shaft Diameter	105 mm	125 mm	135 mm
Capacity	125 kg/h	175 kg/h	200 kg/h
Host Machine Power	22 kw	30 kw	37 kw
Strand Die Head Power	2.2 kw	2.2 kw	2.2 kw
Cutter Power	1.5 kw	2.2 kw	2.2 kw
Water Cooling Tank	2 m	2 m	3 m
Storage Barrel	Stainless steel materials with capacity 1 ton volume
Screen Filter Replacement	Electrical Gear die head is standard configuration for our machine,Hydraulic pressure die head is also available.

Top EPE recycling machine manufacturer in China own large scale facilities and over 10 years of experience in EPE recycling industry.Stocks of EPE pelleting granulators are always available.The machines from Myaid Machinery are 5 star rated by the market.Welcome to visit and see.
